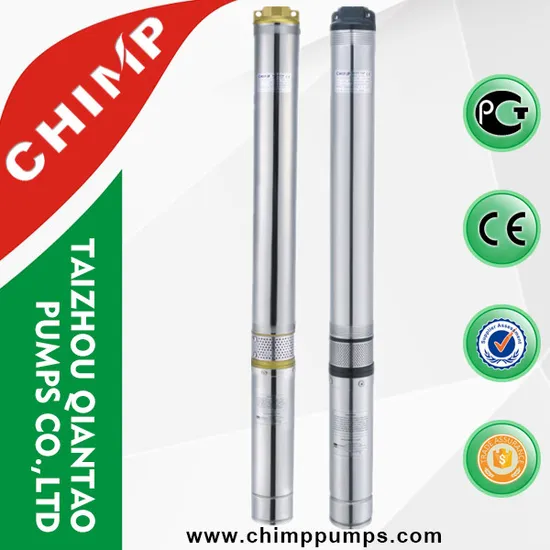

4 Inch Multistage Deep Well Electric Submersible Borehole Water Pump

Product Description

IDENTIFICATION CODE
100QJD206-0.37
100: Well diamater: 100mm(4")
QJ: pump name
D: Single motor( Three phase without M)
2: Capacity (m3/h)
06: Impeller stage
0.37: Motor Power(kW)

APPLICATIONS
For water supply from wells or reservoirs.
For domestic use , for civil and industrial applications.
For garden use and irrigation.

OPERATING CONDITIONS
Maximum fluid temperature up to +35ºC
Maximum sand content: 0.25%
Maximum immersion: 50M
Minimum well diameter: 4"

MOTOR AND PUMP
Rewindable motor, full obturated screen motor
Three phase: 380v-415v/50hz or 60hz
Single phase: 220v-240v/50hz or 60hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standard

OPTIONS ON REQUEST
Special mechanical seal
Other voltages or frequency viable
FAQ

Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, first time cooperation, we accept trial order to check quality.

Q: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.

Q: What are your payment terms?
A: 30% T/T deposit, 70% against documents, or L/C at sight.

Q: How long is your warranty?
A: One year!

Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.

Contacting information:
TAIZHOU QIANTAO PUMPS CO.,LTD(CHIMP)
TEL: 0086-576-86330365
FAX: 0086-576-86334238

WEB: chimppumps.en.made-in-china.com

---
