China Factory Lifting Equipment Electric Chain Hoist High Quality Lifting Chain Block Hoist Electric Winch Crane with Trolley

Product Description

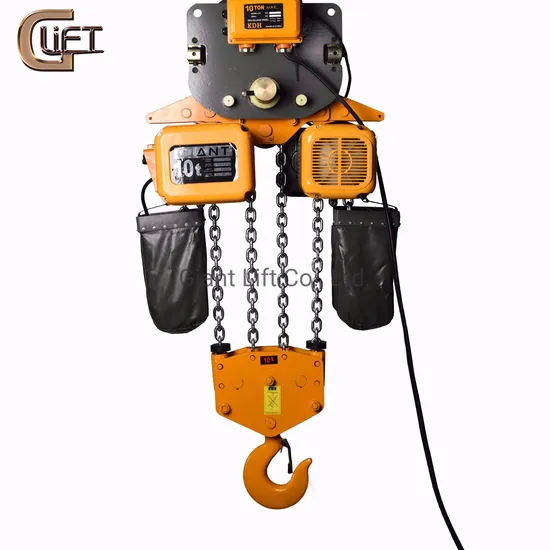

GBD-II Series: 10 Tons Electric Chain Hoist with Trolley Product Description

1. Shell: Light but solid Full Aluminum case with built-in heat dissipation fan, best cooling effect, longer motor life, fit for the use in the severe work environment.
2. Motor: High quality motor, Low noise, working class M5, suitable for high-intensity continues use environments.
3. IP55: Protection grade IP55, applicable to wider range of environments.
4. Compact: Compact design, increase effective lifting distance.
5. Hook: high strength hook is designed with 360-degree flexible rotating structure.
6. Trolley: Small size trolley allows higher installation height, tight connection to the hoist and more lifting distance.
7. G80 Alloy chain: Equipped with High strength and hardness G80 Alloy chain, safe and durable.
8. Inverse phase sequence protecting device: It is the special electrical installation. which control the circuit not to work in case of wiring error in the power supply.
9. Controller: 24V low voltage Control handle with emergency stop button (Option: Wireless controller is also available with extra charge)
10. Double safety mechanism: Equipped with friction clutch and upper-lower limit switch. The friction clutch is an emergency overload protection device that idles the motor when subjected to an excessive load over the rated capacity. In the event that a load is lifted or lowered excessively, the limit switch stops the motor, preventing hoist or load chain damage. Side magnetic braking device: This device shall realize the instant brake in case of the power dump.
11. Chain bag: Light, handsome and durable.
Option:
Install inverter, stepless speed regulation, suitable for more working conditions with different speed requirement.
Wireless controller is also available with extra charge
Product Parameters

Type	Capacity (Ton)	Lifting Height (m)	Lifting Speed (m/min)	Lifting motor					Operating motor
				Power (Kw)	Rotation Speed (r/min)	Phases	Voltage (V)	Frequency (HZ/S)	Power (Kw)	Rotation Speed (r/min)	Operating speed (m/min)	Phases	Voltage (V)
GBD-II10-04 Y	10	4	3.5	3.6x2	1440	3	380	50	0.75	1440	11/21	3	380
GBD-II15-06 Y	15	4	2.3	3.6x2	1440	3	380	50	0.75x2	1440	11/21	3	380
GBD-II20-08 Y	20	4	1.75	3.6x2	1440	3	380	50	0.75x2	1440	11/21	3	380
GBD-II25-10 Y	25	4	1.4	3.6x2	1440	3	380	50	0.75x2	1440	11/21	3	380
GBD-II30-12 Y	30	4	1.17	3.6x2	1440	3	380	50	0.75x2	1440	11/21	3	380

Detailed Photos

Similar Products
QUALITY CONTROL PROCESS
FAQ

Q1: Are you a factory or a trading company?
A1:We are a combination of both, we focused on manufacturing material handling product such as lift tables, manual & electric pallet trucks and lifting platforms over 35 years, we also exporting manual & electric chain hoist, lever hoisting, lifting clamp and steel jack. We are your ideal choice for one stop purchase with our compete line of industrial lifting/moving equipment
Q2: Can Giant lift provide customized products? OEM products or ODM products?
A2: Yes, Giant lift can provide customized products according to your requirement. Both OEM and ODM are acceptable.
Q3: Can we print the LOGO on products?
A3: Yes, the OEM is available with the permission of our customers.
Q4: How do you control your quality?
A4: 1. We only select high-quality steel material from famous steel group
2. Standardized production process with traceable ID Card, every part can be tracked to the original records.
3. 100% finished product testing before shipping.
4. We accept third party product inspections.
5. ISO9001 Quality management system certificated factory
6. Supervised container loading process, ensures the last step security
Q5: How long is the warranty on your products?
A5: We provide 12 months warranty for all of our product, excluding wear parts such as wheels, tire or hydraulic oil
Q6: What's the lead time for production?
A6: Usually around 10-15 days after payment received, around 30 days during new year's or national holidays.
Q7: What Payment terms do you accept?
A7: T/T or L/C, if you want any other method please contact sales
Q8: What are your advantages compared to the others?
A8: Unique products, with customized service. Timely production and delivery, time is money. Market protection service, long term business strategy.

---
