Automatic Carton Box Case Filling Equipment

Product Description

Product Description

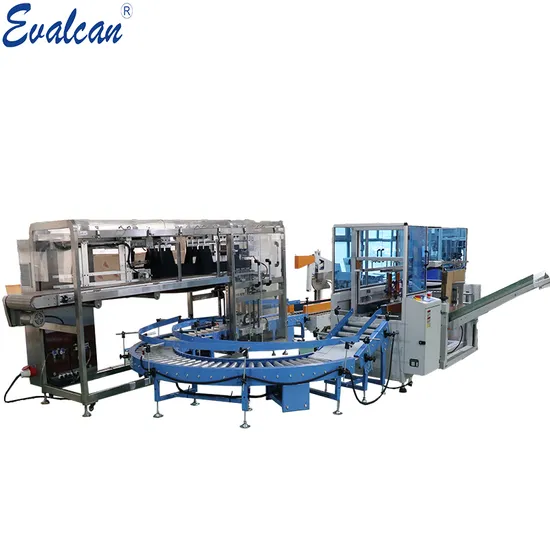

An efficient packing solution, which can automatically complete the material sorting, positioning and packing, unpacking and sealing.
Product Parameters
Case packing station for Pouch/Cotton

Name	Case packing station for pouch/cotton
Power	5kw
Bag size range	Length 80-350mm Width 80-250mm Size can be customized
Case size range	Length:250-500mm Width:190-400mm Height:160-400mm Size can be customized
Row quantity	1-5rows as factual request
Layer quantity	1-5 layer as factual request
Film width	Max. 800mm
Bag stacking speed	Max. 300PPM
Case erecting speed	Max. 35cases/min
Size	5500*3500*1850mm
Weight	About 1200kg
Electricity	380V/50HZ/3P
Compressed air	0.4-0.8Mpa, 0.6m3/min

Case packing station for bottle/container

Name	Case packing station for bottle/container
Feeding speed	5-40m/min, adjustable (2000-16000 bottles/hour according to 550ml round bottle)
Column width	450mm
column number	adjustable from 1-10
Material size	Height 40-300mm, width20-150mm (other sizes are customized)
Carton size	L250-450×W150-400×H100-400mm (other sizes are customized)
Packing speed	1-15 boxes/min (can be customized)
Power	380V/50HZ/2.5kw
Machine dimension	L3270*W800*1450mm
Machine weight	about 750kg

Packages
After Sales Service
1. Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. Free packing solution from our chief engineer.
3. Evalcan have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
4. If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
5. Evalcan technician are available send to your countries for services if you agree pay the expenditure.
6. One year guranty for machine. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you.
7. Evalcan has an independent team for after-sale service. Any emergency please call the saleman.
FAQ
Q1: How to find a packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product would you like to pack?
2. The bag/sachet/pouch size of you need for the product packing ( the length, width).
3. The weight of each pack you need.
4. Your requirement for the machines and the bag shape.
Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3. How can we make sure about the machine quality after placking the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q4. Can you explain me the whole transaction process ?
1.Sign the contact.
2.Arrange 40% deposit to our factory.
3.Factory arrange production.
4.Testing & detecting the machine before shipping.
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
Q5: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.

---
