0.09mm for Wirewound Resistors Copper Nickel CuNi44 Alloy Wire

Product Description

Product name:0.09mm for wirewound resistors Copper Nickel CuNi44 Alloy Wire
Conductor:CuNi44(constanstan)
Size:0.09mm
Status:Bright,soft
MOQ:5kgs

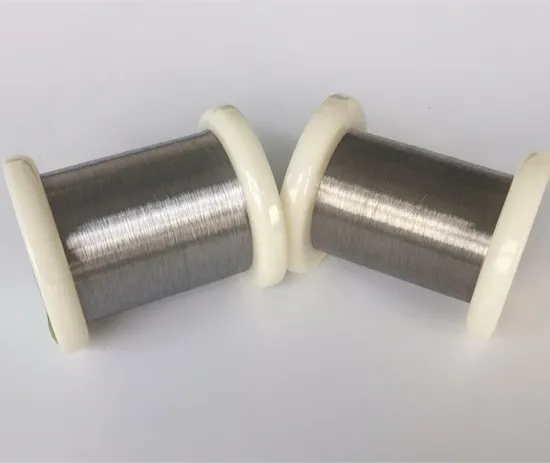

Spool size:DIN80
Grade: CuNi44,it is also called Cuprothal, Alloy 294, Cuprothal 294, Nico, MWS-294, Cupron, Copel, Alloy 45,
Neutrology, Advance, CuNi 102, Cu-Ni 44, Constantan

Chemical Content(%)

Mn	Ni	Cu
1.0	44	Bal.

Mechanical Properties

Max Continuous Service Temp	400 ºC
Resistivity at 20ºC	0.49 ± 5% ohm*mm2/m
Density	8.9 g/cm3
Temperature Coefficient of Resistance	< -6 ×10-6/ºC
EMF VS Cu (0~100ºC)	-43 μV/ºC
Melting Point	1280 ºC
Tensile Strength	Min 420 Mpa
Elongation	Min 25%
Micrographic Structure	Austenite
Magnetic Property	Non.

Regular size:
We supply products in the shape of wire,flat wire,strip.We can also make customized material according to useris requests.
Bright and white wire--0..03mm~3mm
Oxidized wire:0.6mm~10mm
Flat wire:thickness 0.05mm~1.0mm,width 0.5mm~5.0mm
Strip:0.05mm~4.0mm,width 0.5mm~200mm
Product features:
Nice corrosion resistance, good malleability and solderability.The special low resistance can be used in many heater and resistor fields.

Application:
It could be used to make electric heating element in low-voltage apparatus, such as thermal overload relay, low-voltage circuit breaker, and so on.And used in heat exchanger or condenser tubes in evaporators of desalination plants, process industry plants, air cooling zones of thermal power plants, high-pressure feed water heaters, and sea water piping in ships.

---
