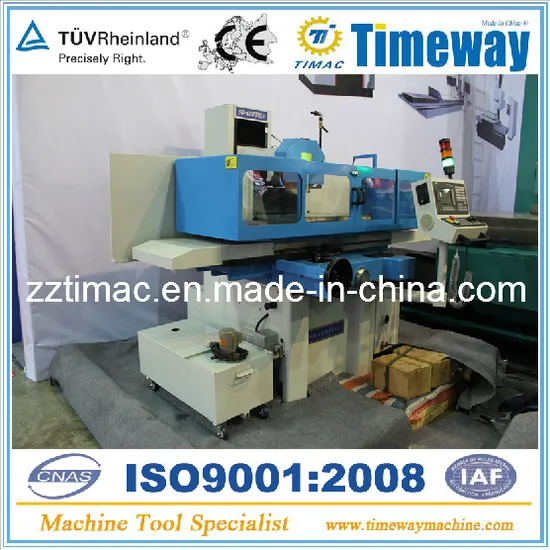

CNC Hydraulic Saddle Moving Type Surface Grinding Machine

Product Description

CNC Surface Grinding Machine/ CNC Surface Grinder
CNC controller make: Siemens SINUMERIK 808D;
CNC2 series : hydraulic for longitudinal direction, CNC for cross and vertical direction;
CNC3 series: CNC for longitudinal, cross and vertical direction.

Specification		Unit	SG-4080CNC2	SG-40100CNC2
			SG-4080CNC3	SG-40100CNC3
Table size(W×L)		mm	406×813	406×1020
Max. longitudinal travel		mm	910	1130
Max. cross travel		mm	450	450
Max.distance from spindle center to table surface		mm	580	580
Electro magnetic chuck size		mm	400×800	400×1000
Table longitudinal movement	Speed	m/min	5~25(CNC2 model); 0.02~15(CNC3 model)
	Feed of electro hand wheel	mm/div.	0.005 (CNC3 model)
Table transverse movement	Auto feed	mm/stroke	0.1~8
	Rapid speed	mm/min	0.05~1
	Feed of handwheel	mm/div.	0.005
Wheelhead vertical movement	Auto feed	mm/stroke	0.005~0.05
	Rapid speed	mm/min	0.05~1
	Feed of handwheel	mm/div.	0.005
Grinding wheel	Speed	rpm	1450(50Hz), 1750(60Hz)
	Size(OD×W×ID)	mm	350×40×127
Spindle motor		kw	5.5
Hydraulic motor		kw	2.2 (NC2 model)
Cooling pump motor		kw	0.125
Parellism of working surface to mounting base		mm	300:0.005
Roughness of working surface		µm	Ra0.63
Max.loading capacity of table(include magnetic chuck)		kg	500	600
Height of machine		mm	1890
Floor space(L×W)		mm	3600×2400	4400×2400
Gross weight		kg	3800	4300
Package dimensions(L×W×H)		mm	2850x2270x2180	2950x2270x2150

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
