Uut-2.5-Gy - Feed-Through Terminal Block Nom. Voltage: 1000 V, Nominal Current: 24 a, Number of Connections: 2

Product Description

UUK-2.5 1000V Din Rail Screw Terminals Connector Terminals&Ground Terminal Block Product Description Feed-through terminal block, nom. voltage: 1000 V, nominal current: 24 A, number of connections: 2, connection method: Screw connection, Rated cross section: 2.5 mm2, cross section: 0.14 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray

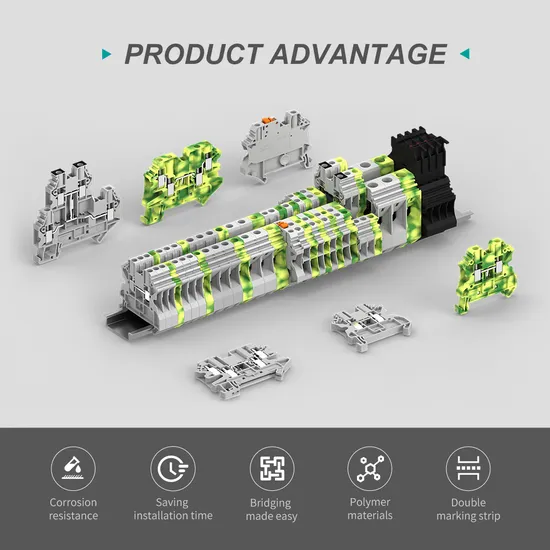

Advantage Industrial Distribution Terminal Blocks Screw type
Closed bolt leading hole will not only facilitate operation of screwdrivers, also prevent the bolt from dropping out;
Electric potential distribution is realized by either connecting central adaptor to the center of terminal or inserting a side adaptor to the cone jack;
General auxiliaries,such as end plate,segment spacer, and spacer, are attached for terminal with multiple sections;
The insulating shell is made if imported engineering plastic polyamides(Nylon)66,which is of high mechanical intensity, good electrical conductivity, and super flexibility;
Two ends on the top with white marking system to realize uniformed sign.
• 1000V
• Good workmanship
• Stable performance
• Easy to install
• Segment test terminal latest structure
• Rich accessories to meet the needs of different occasions
PRODUCT DETAIL DATA

Product properties	UUK-2.5-GY	UUK-2.5PE
Wiring Diagram
Product Classification	Straight-through terminal	Ground Terminal
Product Type	Screw Type Terminal Block	Screw Type Terminal Block
Product Series	UUK	UUK
Connect Number	2	2
Industry	Power Industry Factory engineering process control Mechanical Engineering Railway industry	Power Industry Factory engineering process control Mechanical Engineering Railway industry
Potential	1	1

Wiring data	UUK-2.5-GY	UUK-2.5PE
Strip Length	9	9
AWG	24 ~ 12	24 ~ 12
Rigid conductor cross section	0.2 mm² ~ 4 mm²	0.2 mm² ~ 4 mm²
Flexible conductor cross section	0.2 mm² ~ 4 mm²	0.2 mm² ~ 4 mm²
Minimum wiring capacity of single wire	0.2	0.2
Maximum wiring capacity of single strand wire	4	4
Minimum wiring capacity of multi-strand wires	0.2	0.2
Maximum wiring capacity of multi-strand wires	4	4
Incoming line direction	Side Cable Entry	Side Cable Entry
Width(mm)	5.2	5.2
Height(mm)	47.7	47.7
Deep (mm)	46.9	46.9
NS 35/7.5	47.5	47.5
NS35/15	55	55

IEC parameters	UUK-2.5-GY	UUK-2.5PE
Rated impulse withstand voltage	8kV	8kV
Rated voltage	1000
Rated current	24

UL parameters	UUK-2.5-GY	UUK-2.5PE
Rated voltage
Rated current

Material specifications	UUK-2.5-GY	UUK-2.5PE
Color	Grey	Yellow & Green
Flammability rating	V0	V0
Pollution level	3	3
Insulation material group	I	I
Insulation Materials	PA66	PA66

Standards and Norms	UUK-2.5-GY	UUK-2.5PE
Connections comply with standards	IEC 60947-7-1 GB14048.7.1	IEC 60947-7-2 GB14048.7.2

---
