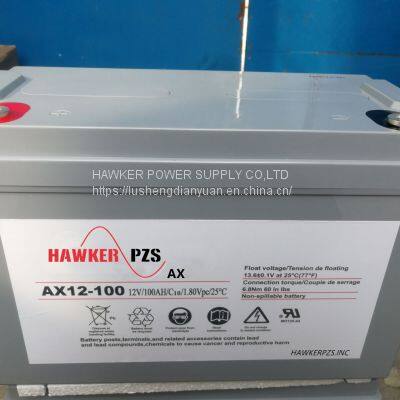

HAWKERPZS AX12-45 AX12-100 AGV BATTERIES
HAWKERPZS AX12-45 AX12-100 AGV BATTERIES
Hawk AGV battery AX series
Mobile machines, including various mobile intelligent robots and AGV cars, are powered by batteries. In order to ensure the continuous, stable, safe and reliable operation of mobile machinery, it is very important to reasonably configure the power supply and select batteries with high efficiency and low cost.
Hawk Power Supply Co., Ltd. is an advanced power supply manufacturer. In order to meet the requirements of emerging applications, with its advanced manufacturing equipment and technology, the latest patented technology and materials, it is specially designed for the mobile mechanical power absorption (AGM) AX series maintenance-free lead-acid sealed battery. This series of batteries are produced in strict accordance with the battery standard, which not only strengthens the deep cycle discharge and fast charging capacity, but also improves the safety and reliability of use, without damage to equipment and environment, and without pollution.
Contact Wang Zelong for details.
Compliance with standards
● Product design conforms to international standard IEC 60896/21-22
● According to the Eurobat guidelines released in 1999, this series of products belong to the category of "long life"
● Comply with Telcordia SR-4228
● UL certification (UL standard 1989)
● Approved as non-dangerous goods suitable for land, sea and air transportation according to the U.S. DOT Regulation 49 and ICAO ICAO and IATA Packaging Directive 806
● Manufactured in the factory of Hawk Power Supply Co., Ltd. which has passed ISO 9001:2000 and ISO 14001:2004 certification
Hawk battery AX series specifications and technical specifications
type
Range
AGM (adsorption) AX series
AX12-18
AX12-26
AX12-33
AX12-45
AX12-60
AX12-75
AX12-100
AX12-120
AX12-150
AX12-180
AX12-200
Single voltage
12V
Rated capacity
（25℃）
18AH
26AH
33AH
45Ah
60Ah
75Ah
100Ah
120AH
150AH
180AH
200AH
Internal resistance (m Ω)
ten
eight
nine
seven
six point five
six
five
four point five
four
four
three point eight
Single
size
length
(mm)
one hundred and eighty-one
one hundred and sixty-six
one hundred and ninety-five
one hundred and ninety-eight
two hundred and sixty
two hundred and sixty
three hundred and eight
four hundred and eight
four hundred and eighty-five
five hundred and thirty
five hundred and twenty-two
width
(mm)
seventy-seven
one hundred and seventy-five
one hundred and thirty
one hundred and sixty-six
one hundred and seventy
one hundred and seventy
one hundred and seventy
one hundred and seventy-seven
one hundred and seventy
two hundred and ten
two hundred and forty
height
(mm)
one hundred and sixty-eight
one hundred and twenty-five
one hundred and eighty
one hundred and seventy
one hundred and eighty-five
two hundred and thirty-five
two hundred and fifteen
two hundred and twenty-five
two hundred and forty
two hundred and fifteen
two hundred and twenty-five
Weight (kg)
five point nine
nine
ten point two
fourteen point six
twenty point two
twenty-three point five
thirty
thirty-six point five
forty-seven
fifty-three
sixty-three
short-circuit current
（A）
nine hundred
nine hundred
one thousand one hundred and fifty
one thousand two hundred and fifty
one thousand four hundred and fifty
one thousand seven hundred and fifty
two thousand and three hundred
two thousand four hundred and twenty
two thousand nine hundred and fifty
three thousand three hundred and fifty
three thousand seven hundred and fifty
Maximum emissions
Current (A)
one hundred and eighty
two hundred and sixty
three hundred and thirty
four hundred and fifty
six hundred
seven hundred and sixty-five
one thousand and twenty-five
one thousand and two hundred
one thousand five hundred and ten
one thousand eight hundred and fifty
two thousand and one hundred
Maximum charging current (A)
three point six
five point two
six point six
nine
twelve
fifteen
twenty
twenty-four
thirty
thirty-six
forty
Charging voltage: temperature: 25 ℃, floating charge: 13.62V; Fast charging: 14.2V
Suitable temperature: - 10 ℃~40 ℃
Recommended temperature: 20 ℃~25 ℃
Deep cycle discharge times: 50% DOD more than 1200 times; More than 800 times 80% DOD
terminal
M5
M5
M6
M6
M6
M6
M8
M8
M8
M8
M8
The correct use of Hawk lead-acid power AGV battery can ensure the safe and reliable power supply of the system, and the battery can also reach the longest service life.
Pay special attention to the following items when using Hawk lead-acid power AGV battery:
1. New and old batteries cannot be mixed! The internal resistance of the new and old batteries is different. When used in combination, the single voltage of the new and old batteries is different, which is easy to accelerate the battery damage.
2. Prevent over-discharge of battery. When the battery discharge reaches the rated capacity or the voltage of 12V single battery has dropped to 10.8V, the discharge shall be stopped immediately. (Note: The power supply system must be equipped with low voltage protection for the battery. The protection voltage is 23V, which can extend the service life of the battery).
3. When the battery pack is used, especially when charging, there should be enough space between the battery cells to dissipate heat. The larger the battery capacity, the larger the gap. There should be a gap of at least 1 cm between the battery and the battery.
4. Select appropriate and high-quality charging equipment for charging. Overvoltage and over-current charging are not allowed. The charging ambient temperature should not be higher than 30 ℃. If the ambient temperature is too high, the fan should be used for forced cooling during charging.
5. After the battery pack is discharged and used, it should be charged within 24 hours. The battery should be fully charged before use each time. If the battery is not charged for a long time, the inner plate of the battery will be sulfated. This damage cannot be reversed. In serious cases, the current will not be fully charged, the capacity will drop, or even be completely scrapped.
6. Properly maintain the battery
The output voltage and current of the charging equipment shall be checked regularly with an accurate ammeter. The current and voltage settings of the charging equipment shall not be adjusted without the guidance of professional personnel to prevent misoperation.
The maintenance-free battery does not need to be maintained by adding acid and water. It does not need maintenance management. In order to ensure the good use of the battery, it is necessary to do some necessary maintenance work, such as:
6.1 When the battery is used or stored, it is strictly forbidden to connect the positive and negative poles of the battery with conductive objects to cause short circuit. The short circuit current of the battery is large, which can cause serious injury to human body.
6.2 The battery surface shall be kept clean and dry to prevent self-discharge or impurities from entering the battery.
6.3 The battery is charged before leaving the factory. Generally, the user can directly load it for use. If it has been stored for a long time (more than 2 months), it should be recharged before use.
6.4 If the battery is not used for a long time, it should be fully charged and then stored. If it is not used for more than 3 months, it should be recharged.
6.5 The battery should be stored in a ventilated, dry environment without acid mist, with a temperature of not more than 35 ℃ and a relative humidity of not more than 75%.
6.6 If the battery packaging is accidentally wetted by water during storage or transfer and transportation, the outer packaging should be removed immediately to prevent the water-wetted packaging box from becoming a conductor, causing battery discharge or burning battery terminals.
>>
