220ton Fork/Knife/Spoon Injection Molding Machine

Product Description

220ton Fork/knife/spoon Injection Molding Machine (Model: ZX-220)

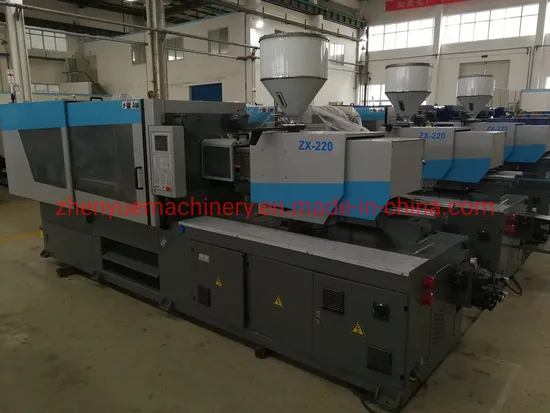

1,Photo
2, Technical Parameter

ZX-220	Injection Unit Date		A	B	C
	Screw diameter	mm	45	50	55
	Screw L/D ratio	/	22	20	18
	Theoretical shot volume	cm3	398	491	594
	Shot weight(PS)	g	366	452	546
	Injection rate	g/s	162	200	243
	Max.screw speed	rpm	210
	Clamping Unit
	Clamping force	KN	2200
	Toggle stroke	mm	520
	Space bettween tie bars	mm	545x545
	Min.mold thickness	mm	180
	Max.mold thickness	mm	560
	Hydraulic ejection stroke	mm	160
	Hydraulic ejection force	KN	49
	Others
	Hydraulic system pressure	Mpa	17.5
	Pump motor	kw	24.5
	Heating capacity	kw	12.6
	Oil tank capacity	L	300
	Machine dimensions	m	5.6x1.4x2.0
	Machine weight	Ton	6.3

3, Platen Dimension
4, Machine Dimension (ZX-220)
5, Technical Characteristics
6, Machine Factory
7, Contact Information
Contact Person: Mr. Tony
Comapny: Ningbo Zhen Yue Machinery Co.,Ltd.
Address: No.39, Lane 158, Huangcheng West Road, Ningbo, China.
Zip Code: 315012
Mobile: +86 13656841356
Tel: +86 574 87082687
Website: zhenyuemachinery.en.made-in-china.com
Remark:
1, the company reserves the right to revise all information (including word, photo) above.
2, due to technology development, the machine design or specification would be changed without any prior notice.
3, if you need CE machine, please tell us in advance of order. Otherwise, we provide normal machine (not CE machine). CE machine is special and expensive.

---
