2 Tons to 10 Tons Low Headroom Explosion-Proof Hoists for Workshops

Product Description

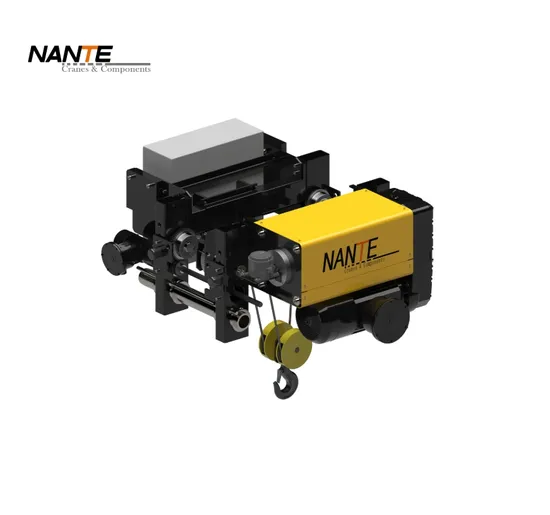

NHA-EX Low Headroom Explosion-proof Hoists Product Description
Used for explosive gas environments of grade IIA, IIB, IIC, T1 to T4, Zone 1 and Zone 2, and conductive dust environments
Product Application
1.Extensively used in factories, workshops, warehouses and many other occasions to hoist materials directly.
2.Installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods.
3.It can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes to hoist different items and so on. It has so many application usages just for its advantages, such as: tight structure, convenient operation, light weight, wide common use and so on.
Design features
1.Low headroom design maximize the lifting height.
2.Follow ISO/FEM M5/2m design standard.
3.Double speed for lifting and inverter control for cross travel.
4.40% energy saving than old design hoist.
5.Ex de IIC T4 Gb Ex tD A21 IP65 T130ºCIP65 push button
6.Ex db eb IIC T4 Gb limiter
Control System:
Ex db IIC T4 Gb/Ex tb IIC T130ºC Db IP65 enclosure with powder coating.
Schne/ider brand contactor and reply.
Follow IEC standard design and wiring.
Gear motor
1.Ex db IIC T4 Gb/Ex tb IIC T130ºC Db double speed Gear Motor
2.Electro-magnetic Brake
3.40% ED with IP65, and isolution class HNHA-EX Detailed Photos
Company Profile
FAQ
Q1: Are you Manufacturer or Trading Company?
A1:We are an integrated industrial and trade enterprises. We have our own R&D team, factory and marketing department.
Q2: Which standard of your crane and crane components apply to?
A2: Our Crane can design and manufacture base on FEM, CMAA, ISO EN, GB standard.
Q3: How do you ensure your product quality?
A3: All our processes strictly adhere to ISO-9001 procedures, which include Material Traceability, ISO WPQR and welder certificate, Measuring Device Calibration, NDT for the welding, and full assembling and load testing before delivery.
Q4: How can I make payment?
A4: We accept T/T bank transfer, L/C, Paypal.
Q5: How can I assembly the cranes in my factory?
A5: We suggest you to recruit a crane service team in local to install the crane base on our Installation Guideline and User manual. If cannot, we can send engineer to your factory to guide you do the installation with extra charge, and the transportation, accommodation, translator shall be covered by your side also.
Q6: What is the warranty period, and how can I claim warranty If my crane have any issue?
A6: Our warranty period is 12 months after cargo leave China port. If the crane have any issue, our after-sales team and engineer will help you solve the issue by email or Video conference. If the defect is caused by quality issue, we will ship the spare parts to you by air to help you fixed it as soon as possible.
Q7: Do you accept OEM business?
A7: Sure, we do many OEM productions for some famous crane brand and customers around the world.
Q8: What about shipping?
A8: We recommend small batch by the way of air or LCL, but large delivery by the way of container or bulk vessel.
Q9: What about delivery time?
A9: Different capacity crane and components have different estimated delivery time, generally speaking, around 4 weeks to 8 weeks.
Q10: What is your company policy if we want to distribute NANTE product in our market?
A10: Firstly, thank you for your interest to promote NANTE brand, we have distributors in 50+ countries, pleaes no hesitate to contact us for the detail discussions, as we have different policies for the different target markets. Surely, you are welcomed to visit our factory and let's talk face to face.

---
