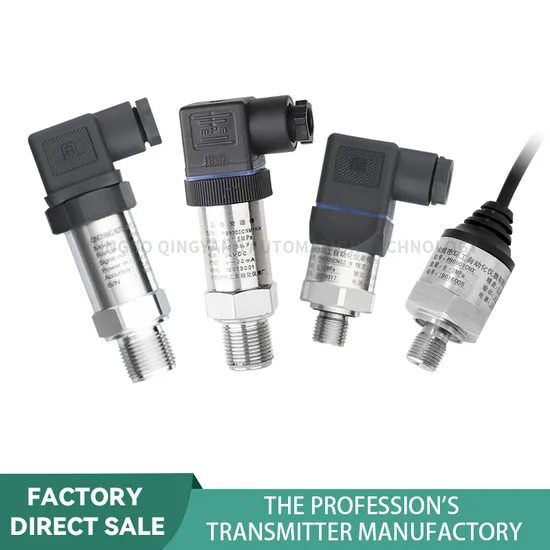

Hydraulic High Temperature Boiler Water Pressure Transducer

Product Description

WPB6300 series diffused silicon stain pressure transmitters use the sensor elements with high accuracy, stability and reliability and measure the pressure of the liquid or gas or the level of the liquid, then change into 4 to 20mA electric signal.
Technical Parameter
Accuracy: 0.5%F·S
Measuring range: -0.1…0bar to -1…0bar
0…0.1bar to 0…600bar to -1…25bar relative
0…1bar to 0…35bar absolute
Linearity: Superior to 0.25%F·S
Stability: superior to 0.25%F·S
Temperature drift: superior to ±0.75%F·S (0…50ºC)
Response time: ≤10mS
Power supply: 24VDC or (12VDC…36VDC optional)
Output: 4…20mA (or 1…5V)
Load resistance: 0~600Ω
roof pressure: 150%F·S
Ambient temp: -20…85ºC
Compensated temp: -20…85ºC
Storage temp: -45…125ºC
Process connection: M20*1.5male or 1/2 NPT male,
Flange or clamp or customized
Electric connection: DIN43650-A/ISO standard junction box
Wetted parts: 304 stainless steel
Housing Material: 304 stainless steel or 316 stainless steel
Power Consume: <0.5W (24VDC)
