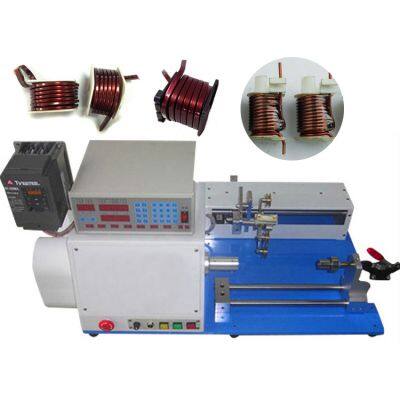

HY-R08 Thick wire transformer high torque winding machine

Product Details

Product Description

Product Description
HY-R08 Thick wire transformer high torque winding machine
Features:
Hui Yue science and technology of large torque winding machine for a variety of low-frequency transformers, ballasts, rectifiers, inductors, mica films and other long lines, large coils, transformers.
1, the use of Taiwan controller, Taiwan and Taiwan AC frequency conversion with three-phase asynchronous motor, environmental protection, stability, long life;
2, multi-functional microcomputer design, data easy to set, turn off to save data, and power-down protection;
3, teaching function design, can be assisted from the starting point and the width of the position setting, the suspension of the editing of winding information;
4,0 ~ 999 sets of steps to set the capacity, can be easily set forward, reverse, cross slot and sparse winding work;
5, Unique motor drive design, the spindle is indirectly driven by the motor to improve the service life of the motor;
6, high torque, thick line with a dedicated product line, energy-saving, high stability, the maximum diameter can be wound around 3.0mm products;
7, you can match the super-extended long, super-long radiation desktop, super-long exhaust radiation products and large products can be customized

Applicable diameter	0.5-3 mm
Cable width	0-220mm
Available diameter range	290mm
Number of winding shafts	Single axis
Winding motor	Brush/frequency conversion
Cable motor	Stepping
Machine speed	0-200/0-600RPM
Number of memory groups	1000
Machine Size (mm)	L770 * W500 * H450
Machine weight	70kg

---
