Wooden Pallet Making Machinery Compress Wood Pallet Machine Line

Product Description

Product Description

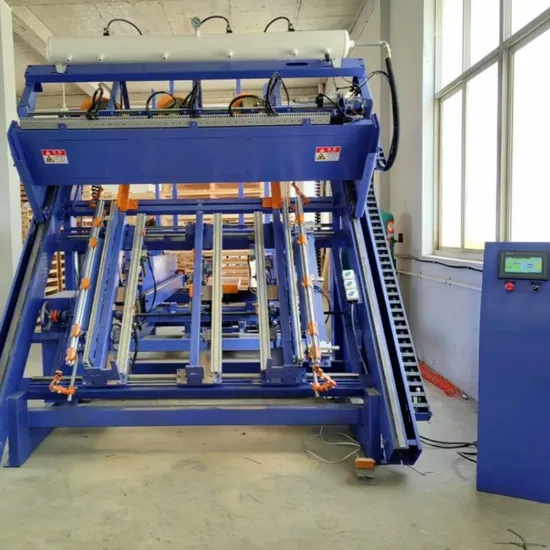

Wood Pallet Nailing Machine

Pallet Type	American/Euro Standard Pallet
Nail Gun Specification	70 Nail Gun *3 units
Air Pressure	0.8MPA
Nail Plate Capacity	3000 PCS nails coil nails
Receiving Material	Automatic Stacking(Pneumatic Type)
Connection mode	Voltage 380V
Operation Mode	PLC Operation
Production Mode	Manual feeding/automatic nail/automatic stacking
Processing Range	800-1250mm can adjust
Nailing Quantity	1, 2, 3 PCS can setting

Wooden Pallet Stacker

Produce Size	800-1250mm
Air Pressure	0.8MPA
Stacking Speed	4-8 S/Min
Motor Power	1.5KW
control mode	automatic
Connection mode	Voltage 380V

Our Customers
Related Machines
1.Wood Pallet Pier Connect Machine

Process Length	700-1300mm (can customize)
Block Size	80-120mm (can adjust)
Efficiency	600-700 pcs/hour
Motor	0.75KW
Nailing Qty	1,2,3,4 PCS
Control	PLC
Nailing Gun	Stanley

2.Pallet Stamp Machine

Process Size	800-1300mm
Stamp Head Material	Steel Mould(Provide 4-6 PCS Mould)
Air Pressure	0.8MPA
Drive Mode	Pneumatic
Sensor	Range Sensor
Motor	1.5KW
Production Mode	Automatic Stamp

3.Pallet Corner Cutting Machine

Process Size	800-1300mm
Carbide Circular Blade Diameter	300mm
Air Pressure	0.8MPA
Blade Speed	2900r/min
Motor	8.8KW
Production Mode	Automatic

4.Wooden Pallet Conveyor
5.Wood Pallet Notching Machine

Model	Single Head	Double Head
Slot Width	200-230mm	200-230mm
Slot Depth	<45mm	<45mm
Cutter Head Qty	1 PCS	2 PCS
Material of Knife	Alloy	Alloy
Processing Wood Length	Max. 1800mm	Max. 1400mm
Processing Wood Thickness	40-60mm	40-60mm
Processing Wood Width	160mm	Max. 90mm
Production	600 PCS/Hour	1800 PCS/Hour
Motor Power	15KW	30KW

Company Profile
Our company is China leading manufacturer of woodworking machinery,we are able to offer professional woodworking machinery to customers.
Our products are mainly included wood crusher,band saw, circular sawmill, wood pallet machine, wood pellet machine, wood planer, production line and so on. We have exported our machines to more than 70 countries and regions around the world, such as Southeast Asia, North America, South America, Africa, Europe, Middle East, Australia, Russia and so on.
In order to meet different requirements of customers, we have been constantly developing and improving product technology, quality and after-sale service. And we able to customize machine according to customer requirements, so it has won the favor of many customers.
If you are interested in our machine, please feel free to contact us.
FAQ
1.What is the machine delivery time ?Delivery time is 10-15 days.2.What is the payment term ?Payment term is 30% TT advance and balance before delivery machine.3.Could the machine customized according to client requirements ?Yes, can customize according to client requirements.4.What terms of trade can provide?We accept EXW, FOB, CIF, Express Delivery.5. What is your company business scope ?Our company main sell woodworking machine, including wood crusher, wood sawmill, wood pallet machine, wood pellet machine, drying kiln, wood planer and so on.
