High-Capacity Vacuum Pneumatic Conveying System for Factory Automation

Product Description

Negative Pressure Pneumatic Conveying Negative pressure pneumatic conveying system is a material transportation method that uses a vacuum pump or fan to generate a pressure below atmospheric pressure in a closed pipeline to suck materials from one place to another.
The negative pressure system mainly uses the vacuum generated by the vacuum Roots blower (or vacuum pump) in the sealed pipeline to feed the material through the suction nozzle (or star feeding valve and mixing acceleration chamber unit) with an air flow lower than the outside atmospheric pressure. Then it is mixed with air and sucked along the conveying pipeline to the cyclone separator (commonly known as sakron) for gas-solid separation to realize material transportation from low or bulk locations to one or more high points. Its characteristics are that the material does not leak out, does not cause environmental problems, and the feeding device is relatively simple. Product Description Positive pressure dense phase pneumatic conveying parameters

Item	Transfer Mode	Transfer Volume(t/h)	Transfer Pressure(kPa)	Pipe Dia(mm)	Height(m)	Distance(m)
Para	Negative Pressure Pneumatic Conveying	0.1-150	29.4-196	50-300	10-200	10-2000

Real cases of Negative Pressure Pneumatic Conveying

Suitable for centralized transportation from multiple places to one place. There can be one or several feeding points, and the feeding pipe can be equipped with one or more branch pipes. Not only can materials from multiple feeding points be transported to the unloading point in sequence, but materials from multiple feeding points can also be transported to the unloading point at the same time. Under the action of negative pressure, the material is easily sucked in, so the feeding at the throat is simple. The hopper can be opened for continuous feeding and conveying. Materials are conveyed under negative pressure, and moisture is easy to evaporate. Therefore, materials with higher moisture content are easier to convey than pressure-feeding. Materials supplied under heating can be cooled by conveying. Components must be kept sealed, and the structures of domestic separators, dust collectors, air locks and other components are relatively complex. The fan is located at the end of the system, requiring a high degree of air purification. Certifications

Company Profile
Shandong Yinte Environmental Protection Equipment Co., Ltd. is located in Zhangqiu, Jinan, Shandong, with a registered capital of 10 million yuan. It is committed to providing complete pneumatic conveying system solutions for various large, medium, and small enterprises.

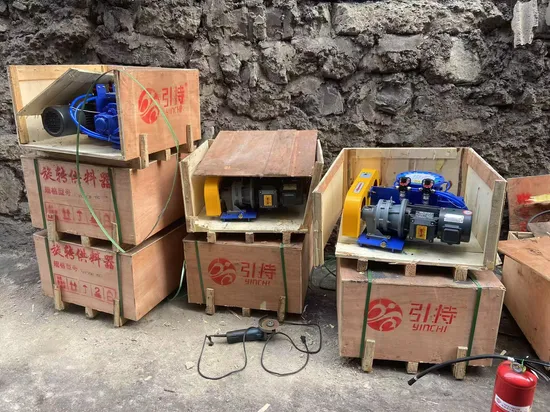

Our company has a professional technical design and development team as well as an equipment production team, mainly producing pneumatic conveying related equipment such as rotary feeders, Roots blowers, and bag filters.
In the process of rapid growth, our company adheres to the corporate philosophy of dedication, integrity, harmony, and innovation, insisting on only producing sticky products, not manufacturing defective products, and not releasing defective products. We are committed to facing the pain points of the industry, adhering to our own product characteristics, constantly innovating and optimizing our products. Through our excellent design, production, and service, we have solved the problems of desulfurization, denitrification, dust removal, and ash removal in pneumatic conveying for many companies, and have received unanimous praise from both new and old customers! Customer cases onsite FAQ FAQ 1. How can I get the price?
- We usually quote within 12 hours after we get your inquiry .
2. Can I buy samples? - Yes. Please feel free to contact us.
- Our MOQ: 1 SETS
3. What is your delivery time?
- It depends on the order quantity,as general with 15 days.
4. What is your payment term?
- T/T, CASH.L/C,Western Union, MoneyGram, and Paypal. This is negotiable.
5. What is the shipping method?
- It could be transport by shipping or express.
- It depends on the weight and volume of the specific cargo.
6. How do you make our business long-term and good relationship?
- Best Quality + Fast Delivery time + Competitive price + Professional service
MORE DETAILS KINDLY CONTACT DIRECTLY,WAITING YOU NEWS!

---
