Plastic Drain Board Production Line Used for Tunnels and Buildings

US$160,000.00-180,000.00 1 Set (MOQ)

Basic Info.

Model NO.
PSB-2000
Product Type
PE Board
Board Layers
Single Plate
Screw No.
Single-screw
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Customized
Customized
Condition
New
GSM
350-2000
Popular Weight
400GSM
Final Roll Width
2m
Roll Length
20m/Roll
Geotextile Lamination
with or Without Both Possible
Material
100% Recycled or 100% Virgin
Brand
Junsheng
Transport Package
by Pallets
Specification
2000mmm
Trademark
JUNSHENG
Origin
China
HS Code
84778000
Production Capacity
20 Sets/Month

Product Description

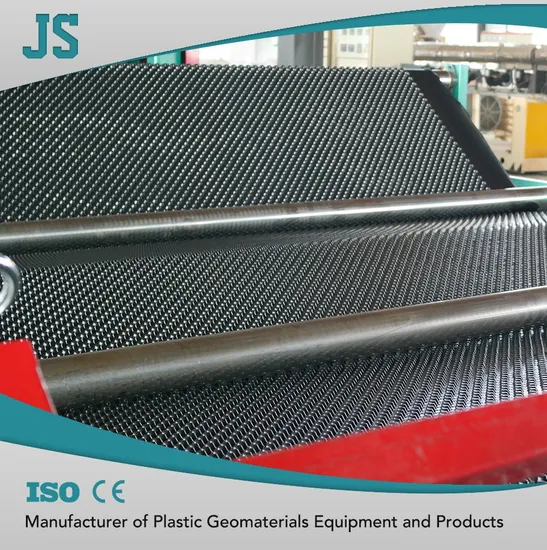

plastic drain board production line used for tunnels and buildings
Junsheng Brand machines have passed CE certificate and exported to over 20 countries, like Turkey, Poland, Russia, Romania, Germany, Kosovo, etc.
Machine guarantee is 2 years and we offer Turn-key project.
Brief Introuction of Junsheng Waterproof Sheet Machine:
- Convex wall thickness of the circular convex on the drainage panel is well-proportioned.
- Compression strength is 50% higher than similar product, which solves the problem.
- Power saving 30%.
- Higher output
- Same forming roller, with changing different dimples, different sizes will be got.
- With changing mould, round and square shape.
- Drainage board thickness range is 0.5-5.5mm, width up to 5000mm.
Main Technical Specification of Junsheng Waterproof Sheet Machine:
Model PSB-2000 PSB-3000 PSB-4000 PSB-5000
Screw dia. mm 135 150 180 150×2
L/D ratio L/D 30:1 30:1 30:1 30:1
Product width mm 2000 3000 4000 5000
Product height mm 8, 10, 12, 15, 18, 20, 25, 30, 35, 40
Output Kg/h 400 500 700 1000
Line speed m/min 2-6
Installed capacity KW 252 320 410 550
Power consumption KW 132 160 220 300
Dimensions (L×W×H) m 22×4×2.8 22×5×2.8 22×6×2.8 23×6×2.8
Total weight T 16 20 28 35

More Photos:
