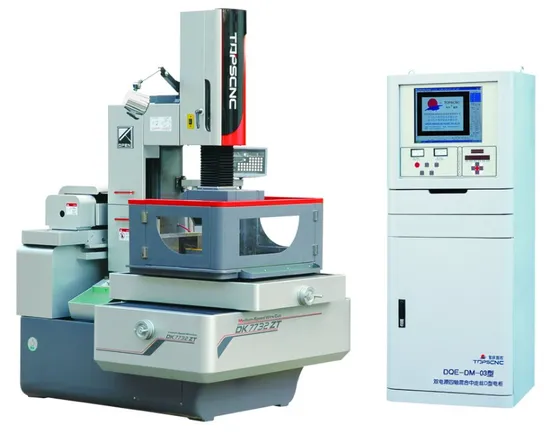

Wire Cut EDM Machine for High Precision Mould

Product Description

Product description

Technical parameter	Unit	DK7732ZT	DK7740ZT	DK7750ZT	DK7763ZT
Table size (W*D)	mm	740×460	840×540	1020×640	1180×750
Table travel (X*Y)	mm	400×320	500×400	630×500	800×630
Max.workpiece dimension	mm	820×520	980×600	1200×700	1300×800
Max. thickness of workpiece	mm	300		350
Max. workpiece weight	kg	600	1000	1600	2000
MIn. control pace(X,Y)	mm	0.001
Z-axis vertical stroke	mm	250	250	300	300
Taper U,V shaft trip	mm	±35×±35
Max. taper cutting	mm	±6°/80
Min. control pace(U,V)	mm	0.001
Motor type		X,Y,U,V stepper motor drvie
Z-axis control		electronic control
Axis controlled		X,Y,U,V
Max.trip wire cylinder	mm	200
Diameter of Molybdenum	mm	φ0.10-φ0.25 ( recommend φ0.18)
wire feed rate	m/s	1-11.4frequency adjustable
Max.lay aside wire length	m	250
Precision	mm	≤0.012
Max. machining speed	mm2/min	≥200
Surface roughness	μm	one time Ra≤2.5,three times Ra≤1.1 five times Ra≤1.0
Water tank	L	90
FiLtering mode		Paper filter
Power supply		3Ph,380V;50Hz
Power consumption	kw	1
Max. working current	A	12
Machine weight	kg	2100	2500	3100	3800
Machine dimension	mm	1800x1400x2170	2050x1720x2160	2230x1860x2265	2520x2180x2265
Size package	mm	2010x1500x2460	2220x2100x2460	2350x2000x2550	2800x2300x2550
Noise	db	≤70

Products details
Optional
Our Factory
Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine. The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut edm, Die sinking edm and Micro hole drilling edm. The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. "Innovation, development and win-win situation" makes TOPSCNC enjoy high reputation in this line. TOPSCNC people wish to share success with you in the future!
Certificate
Our services
1) Quality : We take care of the product quality in order to provide good service to our customers. 2)Warranty: One year after shipment,consumables are not included. 3)The quotation do not include installation and education training fee.
4) Payment Method: T/T or L/C
T/T 30% with the order, the rest 70% of total amount T/T before shipment.

5) Delivery time : 20--25 days

6) Packing : Standard export wooden cases

7) Port: Shanghai or any China port
TOPSCNC Customer
Contact us
Company:Jiangsu Dongqing CNC Machine Tool Co.Ltd
Address:East Suburb Development Zone,Taizhou city,Jiangsu Province,China
