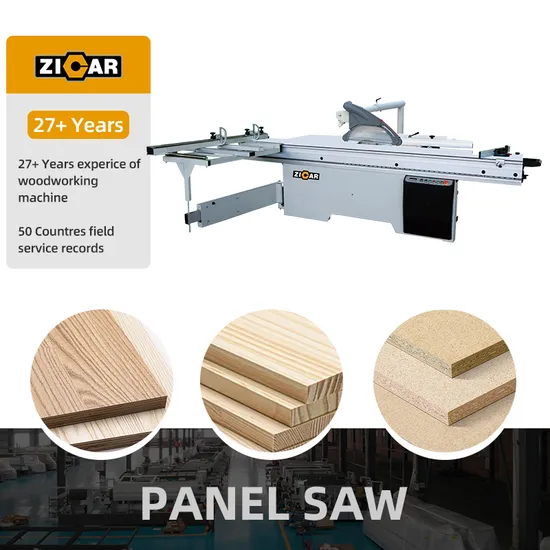

ZICAR panel sliding bench saw table machine woodworking sliding

Product Description

ZICAR panel sliding bench saw table machine woodworking sliding
Features
1.The main function of the precision panel saw is to use its structural characteristics, that is, to use two fixed saw blades-the scoring saw blade and the main saw blade, to manually push the mobile work made of the aluminum profile carrying the processed board parts The table moves back and forth to realize the sawing of the processed plate.
2.The main structural feature of the precision panel saw is the use of two saw blades, namely the main saw blade and the scoring saw blade. When cutting, the scoring saw cuts ahead of time, and first cuts a groove with a depth of 1 to 2 mm and a width of 0.1 to 0.2 mm thicker than the main saw blade on the bottom surface of the processed board to ensure that The edge of the cutting edge will not tear when the main saw blade is cut, so as to obtain good cutting quality.
3.The scoring saw blade has a small diameter, usually around 120mm, and is driven by a separate motor. It is required that the scoring saw blade and the main saw blade are aligned in the same vertical plane. The diameter of the main saw blade is generally 300-400mm, which is driven by the main motor through the V-belt.
Product Parameters

Overall Dimensions	3200x3150x900mm
Sliding Table Size	3200x430mm(375mm optional)
Max.Cutting Length	3100mm
Cutting Width Between Saw Blade and Rip Fence	1200mm
Max.Cutting Thickness	80mm(100mm optional)
Main Saw Blade Diameter	305mm(200mm-400mm optional)
Scoring Blade Diameter	120mm
Main Saw Blade Speed	3000/4000/5000rpm
Scoring Saw Blade Speed	8800rpm
Main Saw Spindle Diameter	30mm
Scoring Saw Spindle Diameter	20mm
Main Motor	5.5kw
Scoring Motor	1.1kw
Saw Blade Titling Angle	90°-45°
N.W/G.W	800/900kg
Packing Size	2180*1220*980mm
	3400*480*270mm

Detailed Photos
Euro-type Extraction hood
Control Panel
Europe Type Sliding Table
Master Seat
Pallet Rack
Altenorf Type Saw Unti: Smooth Running And Powerful
Product Display
Packaging & Shipping
Certifications
Company Profile
JAYA INTERNATIONAL, has been dealing in woodworking machinery for more than 27 years,started from Jaya Trading at the beginning of 1992. In 2008, we made great investment andbecame the holding company of YanTai Lida woodworking machinery Co.,ltd, which has over59 years' history of manufacturing all kinds of China- ·made woodworking machinery since1960, especially for the MQ & ML series combined woodworking machine, it has the extremelyimportant guiding function in the circle. During the past few years, with the development of thecompany and the staff, we also expanded our production line to related fields like general machinery, panel furniture making machinery ,CNC router, Laser machinery, Plywood makingmachine and related hardware, ect. Thanks for our top quality, excellent service and competitive price, thanks for all the supportfrom our customers, now our machine has got great reputation as the brand ZICAR for woodworking machinery, MATIC for general machinery , HARRIER for CNC/ laser Machinery,PLYTEC for plywood making machine all over the world with the following advantages:
* More than 300 employees, 56 technicians, covering an area of 35000 square meters.
*ISO9001:2000, CE certified, 15 national patents.
* One-stop service, meet needs of the customers from individuals to international companies.
*OEM service accepted.
* Separate trading office: Jaya Trading with 35 experienced sales offering full scale service.
*lnquiries are typically answered within 8 hours.
*After sale Service: experienced and knowledgeable team of technical support.
*annual turnover: USD 20 million.
We trust that our experience and intimate knowledge of this line will entitle us to yourconfidence.
The more you know us, the more you trust us!

FAQ
1.Our Payment Way?
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationshipwith each other,so there is no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situationduring warranty period, and all the round-trip courier transportation cost of damaged/repairedreplacement parts in warranty period should be borne by the buyer. Wearing parts are notincluded.
(3)24 hour technical support by email or calling.
(4)User-friendly English manual for machine using and maintaining.
4.Our srvices?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support , provideengineer oversea service.

---
