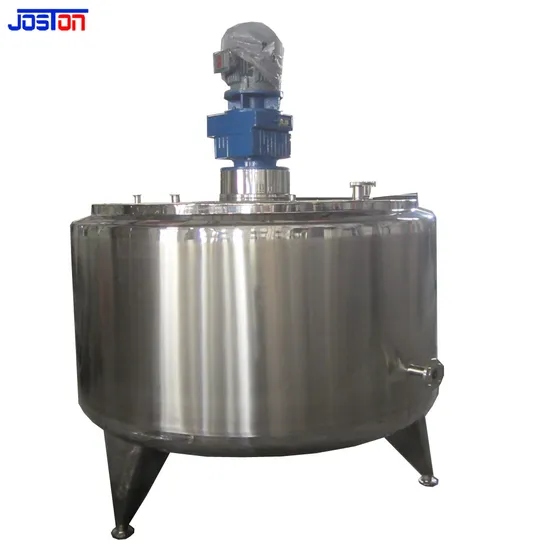

Joston Stainless Steel Mixing Tank Electric Heating Double Wall with Insulation Layer for Chocolates Cordial Jojoba Oil

Product Description

Product Description mixing tank is used to to dissolve one or more materials (water-soluble solid phase, liquid phase or colloidal substance, etc.) in another liquid phase, and make them hydrate into relatively stable emulsions. Application scope: 1. Food and beverage: dairy products, ice cream, butter ,chocolate, soymilk, juice, jam ,paste etc;
2. Cosmetics industry: detergent, conditioner, shampoo, skin lotion, perfume;
3.Chemical industry: lubricating oil, grease, heavy oil emulsification, diesel emulsification, disinfectant, insecticide,photosensitive latex, rubber slurry, resin paste, thickener, essence, silicon material, carbon black, Magnesium Oxide, titanium dioxide, anti sticking agent, release agent, defoaming agent, sealant, etc. Characteristic: 1) Volume we can produce from 20L ---10000L.
2) Material we can use SS304 and SS316L. etc.3) it can used in single layer or double jacket layers.
4) Jacket can be used different type : single full jacket ,limpet coil jacket and dimple type jacket. 5) Jacket can be used for heating and cooling.
6) heating medium can be steam ,hot water ,thermal oil or electrical heater elements.
7) cooling medium can be chiller or tap water etc.
8) Tank can be equipped with manhole ,CIP spray ball ,vent filter level sensor ,temperature sensor ,pressure sensor ,load cell ,PH sensor ,PO2 sensor ,safety valve,sampling valve etc.
9) Tank can be CIP/SIP online 1
0) inside shell mirror polish Ra<0.4um ,outside shell polish Ra<0.8um
11)control panel :PLC /HMI automatic control or common button control .

Model Item	PTE-50	PTE-100	PTE-200	PTE-500	PTE-1000
Tank work volume:L	50	100	200	500	1000
Motor power for high shear emulsifying:Kw	1.1	1.5	2.2	5.5	7.5
Agitator speed for high shear emulsifying :RPM	0-1440 or 0-2900
Motor power propeller type agitator g:Kw	0.37	0.55	0.55	0.75	1.1
Agitator speed for propeller type agitator :RPM	0-150
Motor power anchor type agitator g:Kw	0.55	0.75	0.75	1.1	2.2
Agitator speed for anchor type agitator : RPM	0-45
Inside shell pressure MPa	-0.1/0.3 (can be done as client's URS)
Jacket pressure MPa	0.15 (can be done as client's URS)
If heating by electrical element in the jacket ,the electrical heater power KW	4	8	16	30	50
Jacket heating medium for electrical element	electrical heating water or thermal oil
Jacket type	Single full jacket

Detailed Photos
Company Profile
After Sales Service SERVICEWe have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)FAQ1.What about your factory?
Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
2.How will your company control the equipment quality ?
We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .
3.How long the warranty will be?
We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .
4.Which kind payment do your company do now ?
We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
5.Can we become your distributor in our country?
Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
6.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the ruuning.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.
7.Do you supply installation equipment in oversea?
Yes, if need, we can send our engineer to your plant to help you do installation and commission.
8.How can we know the order production status ?
We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here
9.what is kind service do you offer before making order ?
1.according to your company URS ,we will make the design drawing accoridingly.
2.after your company approved drawing ,we will make quotation.
3. final we make agreement on payment terms ,delivery time ,package ,shipment etc.
10.how about your company after-sale serivce ?
1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.

---
