Chewing Gum Making Machine

Product Description

Main Description

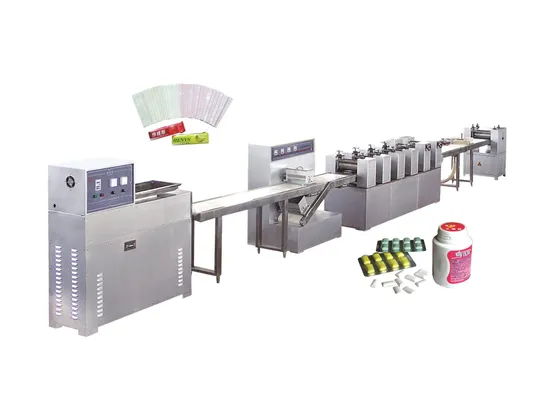

This production line which mainly consists of sugar crusher, gum base oven, blender, extruder, conveyor, powder sprinkling device, pastry roller, molder, folding machine and stick wrapper is specially designed and produced for producing bubble gum (chewing gum) with different colors & flavors.
Mixer: Raw materials to be mixed into dough( before mixer, there is a gumbase heater). Processing line:
Dough to be put into the extruder all the way going through Sheeting machine and becomes gum sheet , further moving to the gum slab forming and cutting machine ,and out-coming gum slabs . The gum slabs are put onto the wooden trays and sent into the aging room for aging in hours.
Capacity : 2-2.5 ton/8hours or 300kgs/ hour.
Bigger capacity is available upon requirement.
Drying Room:
Scoring gum slabs on wooden trays are put into drying room for
5-12hours, time is varied upon product recipe.
Aging room temperature : ±20ºC, and moisture: 50-55
Coating Systm:
for chicle gum or coating gum , the scored gum slabs are tumbled till each
gum core is separated .
Main Principle
Gumbase melter --Mix with flavor and pigment --Extruding --Cooling --Dust powder conveying --Pastry rolling --Dust absorber --Forming --Folding and stick packing
Main Parameter

Items	Size	Overall power (kw)	Overall dimension(mm)
Blender	100 cubic liter " S" stirrer	12.1	1750×820×1250
Extruder	Double Screws	11.7	1650×480×1250
Pastry rolling machine	3 or 6 layers	4.1	2400×750×1200
Dust powder machine		1.11	4200×380×930
Cooling station			1000×2000×800
Scroll cutter		1.1	760×780×1150
PS: All Specifications can be Customized.

Main Feature
1. Adopt PLC controlling system, with highly automatic working performance and high production capacity.
2. Adopt double extruding procedures, remaining original chewing flavor, utilizing vacuum negative power sucking system.
3. All Food Grade 304 SS makes materials cater HACCP CE FDA GMC SGS International Standards.
4. Imported electric appliances, such as Omron, Siemens, etc. ensure the stable working performance without defaults Our Services & StrengthAs a manufacture,We can guaranteed delivery time,supply you good pre-sales and after-sales service.
We are expert in gum candy related machines , especially stick chewing gum and chicle/coating chewing gum making machines.We can provide chewing gum supply chain services .
We have excellent /unique coating system for chicle/coating gum, which is key to make top quality chiclet gum.

---
