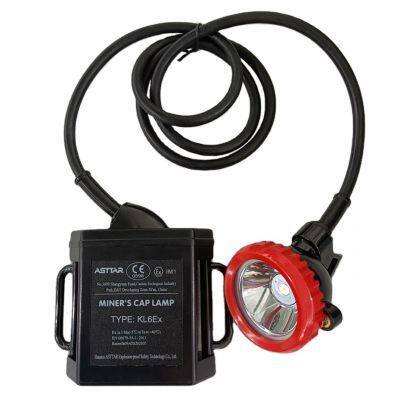

ATEX Approved IP65 6Ah high brightness corded Mining Light, Underground Mining Lamp, Miners headlamp
Specification
They own Europe Coal Mine Explosion-proof Certificate-ATEX. Main light adopt LEDs, has a high brightness and long life span. The switch of head lamp adopts light-touch electronic switch, good seal and easy to use, With the microprocessor control chip inside, it has multi-function for self-protection, intelligent managing the process of charging and discharging, and can be charged by all kinds of chargers. It has Lithium manganic battery pack, which has no memory, free of maintenance, environment protection, safe and reliable. The product is widely used for lighting in the environment where flammable and explosive gases exist.
K--- Miner's Cap Lamp
L--- Li-ion battery
6--- Rated capacity of battery(Ah)
Ex--- Explosion-proof
Product Parameters
Item
| KL6Ex
|
Battery style
| Li-ion
|
Rated capacity
| 6Ah
|
Rated voltage
| 3.7V
|
Lighting time
| 20h
|
Main light source
| Working current
| 0.28 A
|
Max luminance
(1m apart from the lamp)
| When lighting begins
| >7000lx
|
After lighting for 11h
| >6000lx
|
Sub-light source rated power
| 0.06A
|
Life of cap lamp
| 2 years
|
Charging Voltage
| (6-8)V
|
Charging time
| ≤10h
|
Explosion protection
| Ex ia I Ma
|
Protection grade
| IP65
|
Dimensions of battery case
| 105×31×120 mm
|
Weight
| 0.63kg
|
Certifications
Detailed Photos
Related products
FAQ
Company Profile
With ISO9001, CE authorized lab on respiratory devices for PPE directive, more than 27 years' experience, ODM, OEM service provided, ASTTAR is specialized in developing and manufacturing of explosion-proof safety technology and products. We mainly export products of three categories:
1. Mining underground rescue product
2. Mining explosion-proof lamp
3. Mining explosion-proof instrument and meter
Our main products:
1. CE approved chemical oxygen self-rescuer
2. Compressed oxygen self-rescuer
3. Filter self-rescuer
4. ATEX approved LED miner's cap lamp
5. Methane alarm LED miner's cap lamp
6. LED Flame-proof laneway lamp
7. Mechanical and electronic anemometer
8. Isolated positive pressure oxygen breathing apparatus
9. Automatic resuscitator
10. Optical interference type methane detector
11. Portable multi-parameter gas detector
12. Infrared thermometer
13. Laser distance meter
14. Laser guider
Please Contact us
Shannon Tao
Shaanxi ASTTAR Explosion-proof Safety Technology Co., Ltd.
Add: No.3699 Shangyuan Road, Caotan Ecological Industrial Park, E&T Developing Zone, Xi'an, China, 710021.
>>
