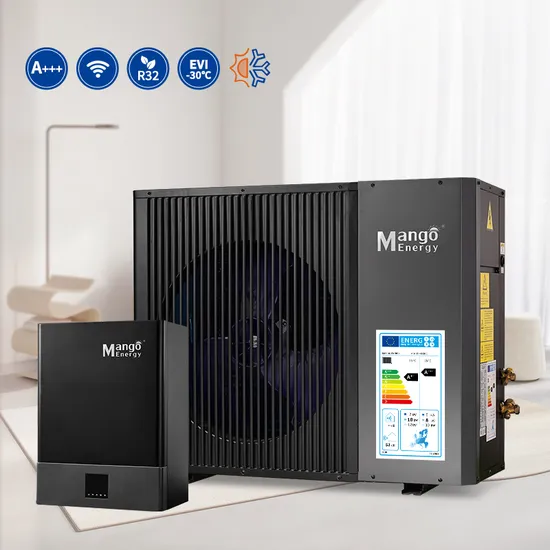

OEM Full DC Inverter R32 Air Source Heat Pump with a+++ ERP Label

Product Description

Name	QII Series DC Inverter Heat Pump
Heating Capacity	9-34kW
COP	2.5-5.6
Warranty	5 YEARS
MOQ	1 UNIT

OEM Full DC Inverter R32 Air Source Heat Pump with A+++ ERP label

Model				MGSDC-030IIC	MGSDC-050IIC	MGSDC-060IIC	MGSDC-080IIC	MGSDC-100IIC
HP				3HP	5HP	6HP	8HP	10HP
Power Supply		Indoor Unit	V/Hz/Ph	220-240V / 50hz / 1ph or 380-415V / 50Hz / 3ph
Ambient	Outlet	Outdoor Unit	V/Hz/Ph	220-240V / 50hz / 1ph	220V/1ph/50hz or 380V/3ph/50hz		380-415V / 50Hz / 3ph
+7°C	35°C	Heating Capacity	kW/h	9	14	16	24	30
		Power Input	kW	1.97	3.03	3.47	5.27	6.77
Floor Heating		COP	-	4.58	4.62	4.6	4.55	4.43
+2°C	35°C	Heating Capacity	kW/h	8.5	12.5	14.3	21.7	28
		Power Input	kW	2.11	3.13	3.7	5.5	7.20
Floor Heating		COP	-	4.02	4.09	4.01	4.07	3.98
-7°C	35°C	Heating Capacity	kW/h	7.1	11	13	18.9	24
		Power Input	kW	2.34	3.54	4.30	6.28	7.87
Floor Heating		COP	-	3.04	3.11	3.02	3.01	3.05
-12°C	41°C	Heating Capacity	kW/h	6	10.5	11.5	17.8	22
		Power Input	kW	2.52	4.43	4.96	7.64	9.40
Floor Heating		COP	-	2.38	2.37	2.32	2.33	2.34
+7°C	45°C	Heating Capacity	kW/h	8.5	13	15	20.6	29
		Power Input	kW	2.36	3.54	4.26	5.74	8.26
Radiators		COP	-	3.6	3.67	3.52	3.59	3.51
-7°C	45°C	Heating Capacity	kW/h	6.8	10.2	12.5	18	22
		Power Input	kW	2.70	4.00	4.92	7.17	8.84
Radiators		COP	-	2.52	2.55	2.54	2.51	2.49
+7°C	55°C	Heating Capacity	kW/h	6	12	14	20	24
		Power Input	kW	2.19	4.05	4.75	6.87	8.57
Hot Water		COP	-	2.74	2.96	2.95	2.91	2.8
+35°C	7°C	Cooling Capacity	kW/h	7	11	13	20	24
		Power Input	kW	2.51	3.86	4.69	7.12	8.82
Fan Coil		EER	-	2.79	2.85	2.77	2.81	2.72
Energy efficiency class		Floor Heating	-	A++	A++	A++	A++	A+
		DHW Mode	-	A+	A+	A+	A+	A+
Heating Operate Range		Ambient	°C	-25~25
		Heating Side	°C	18~60
Cooling Operate Range		Ambient	°C	10~43
		Water Side	°C	7~22
Domestic Hot Water Operation Range		Ambient	°C	-25~35
		Water side	°C	25~60
Compressor			-	Panasonic DC Inverter Compressor with EVI System
Refrigerant			-	R32
Fan Motor			-	Nidec DC Brushless Motor
Controller			-	Touchscreen LCD Controller with WIFI and 13 Languages
Water Heating Exchanger			-	SUS 316 Brazed Plate Heat Exchanger
External Cabinet			-	1.5MM Galvanized Steel With Powder Coating
Rated Water Flow Rate			m³/h	1.5	2.4	2.8	4.1	5.2
Rated Pressure Drop			kPa	30	45	45	40	47
Max Working Pressure		Refrigerant	Bar	44 Bar
		Water	Bar	7 Bar
Water Connection		Inlet&Outlet	inch	1"	1"	1"	1"	1-1/4"
Noise Level		Indoor Unit	dB(A)	37	39	39	40	40
		Outdoor Unit	dB(A)	52	56	58	59	61
Net Dimension W*D*H		Indoor Unit	mm	522*296*863.5	522*296*863.5	522*296*863.5	522*296*863.5	602*308*880
		Outdoor Unit	mm	950*445*800	976*410*1273	940*448*1365	1150*480*1565	1405*590*1626
Net Weight		Indoor Unit	kg	55	55	55	55	70
		Outdoor Unit	kg	58	90	100	120	175

1:Are you a manufacturer?
Of course, Mango is professional heat pump manufacturer since 2019, with experienced and improved R&D, production, sales and service supplying.
2: Do you accept OEM & ODM?
Yes. We can produce standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
3: What support do you offer to clients?
We can provide product certification requirements for local markets; provide catalogs, technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market's media by our news release resources.
4: Will you provide technical promotion support?
Sure, we can provide corresponding pictures and videos to you.
5: How is your price?
We have our own factory not the trading company. There is no middleman between clients and us. We give customers the most favorable price.
6: How long is your Heat Pump delivery time?
It is 3-7 working days if the goods are in stock. if the goods are not in stock, Generally 21-30 working days,it is according
to quantity.

---
