US$3,000.00-7,000.00
|
1 Set
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Panel Feeding Speed
13m/min
Min.length panel
No Limited
Manufacturing Principles
Glue Tank Overhead
Working Board Thickness
10~60mm
Working Board Width
> = 60mm
Transport Package
Wooden Box
Specification
3664x800x1600mm
Production Capacity
100sets/Month
Product Description
Product Description:

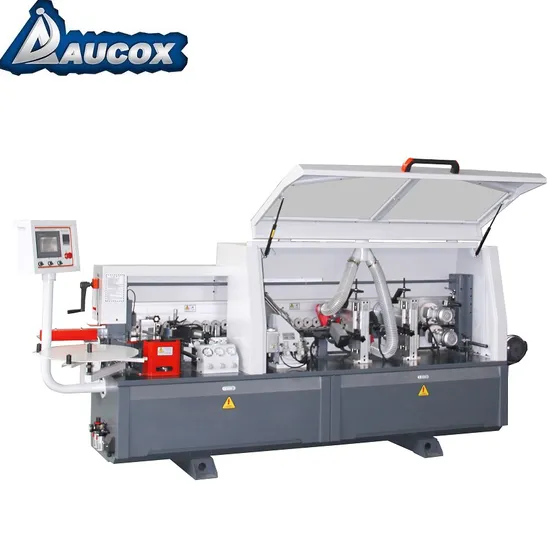

Woodfung Wf360A Full Automatic Edge Bander Furniture Machinery Woodworking Edge Banding Machine
This machine is specially designed and exclusive for foreign market by us,which is multifunction but favourable price.It is used for MDF,wooden board and shaving board.It can complete the processes of feeding workpiece,feeding coiled material,edging,end cutting,fine trimming,scraping and buffing.It can achieve the level as same as foreign machines and the price is favourable.It is especially suitable for the factory producing board .
1/ Edge Banding Material:PVC, Melamine,ABS,Veneer,Solid Wood Strip,etc
2/ Workpiece:Plywood, Fire board, MDF board,Solid Wood,Particle board,etc.
3/ Imported quanlity engines and electric components.
4/ Serialized products,a wide range of selection for customers.
5/ High precision&efficiency.
| Model | WF360A | WF360B |
| Power | 7KW | 7KW |
| Voltage | 380V/220V | 380V/220V |
| Working speed | 15m/min | 15m/min |
| board thickness | 10~60mm | 10~60mm |
| pvc thickness | 0.3~3mm | 0.3~3mm |
| board width | >=60mm | >=60mm |
| working pressure | 0.6Mpa | 0.6Mpa |
| Overall size | 3664x800x1600mm | 3864x800x1600mm |
| Weight | 1200kg | 1400kg |
| Functions | gluing/end cutting/trimming /scrapping/buffing
| gluing/end cutting/ rough trimming/fine trimming/scrapping/buffing |
Detailed Images:
WF360A/360B functions: Gluing → End cutting→Rough Trimming→Fine Trimming → Scraping → Buffing
Related Products:
| Model | WF60E | WF360A | WF360B | WF360C | WF360YC | WF360YCC | WF360D |
| Motor power | 4KW | 7KW | 8.5KW | 8.5KW | 11KW | 19KW | 15KW |
| Panel width | ≥60mm | ≥60mm | ≥60mm | ≥60mm | ≥60mm | ≥60mm | ≥60mm |
| Panel thickness | 10~60mm | 10~60mm | 10~60mm | 10~60mm | 10~60mm | 10~60mm | 10~60mm |
| Edge band thickness | 0.4~3.0mm | 0.4~3.0mm | 0.4~3.0mm | 0.4~3.0mm | 0.4~3.0mm | 0.4~3.0mm | 0.4~3.0mm |
| Edge banding width | 12~65mm | 12~65mm | 12~65mm | 12~65mm | 12~65mm | 12~65mm | 12~65mm |
| speed | 0~13m/min | 0~13m/min | 0~13m/min | 0~13m/min | 0~13m/min | 0~13m/min | 0~13m/min |
| working pressure | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa | 0.7Mpa |
| size(LxWxL)mm | 2740*850*1480 | 3700*930*1600 | 4080*930*160 | 4180*930*1600 | 5000*930*1600 | 5700*930*1600 | 5900*930*1600 |
| WF60E | gluing,trimming,scrapping and buffing,also with manual end cutting |
| WF360A | gluing,end cutting,fine trimming,scrapping and buffing |
| WF360B | gluing,end cutting,rough trimming,fine trimming,scrapping and buffing |
| WF360C | gluing,end cutting,fine trimming,scrapping,vertical grooving,horizontal grooving and buffing |
| WF360YC | pre-milling,gluing,end cutting,rough trimming,fine trimming,scrapping and buffing |
| WF360YCC | pre-milling,gluing,end cutting,fine trimming,scrapping,vertical grooving,horizontal grooving and buffing |
| WF360D | gluing,end cutting,rough trimming,fine trimming,corner rounding,scrapping and buffing |
FAQ:
Q1: What is the warranty for the machine?
For our wood machine, we have 18months warranty.
Q2:Can I choose the voltage?
Yes,we have 380V or 220V for choice for your country
Q3.What is your lead time after i pay?
Normally,we have stock for 380V,for the 220V customized,about 5days.
Q4:How long will i get the machine after i pay?
for small machine by air,about 7days,and for the big machine by sea.about 20~45days to your ports.
Q5:Is it OK to print my logo on the product?
Yes.Please inform us formally before our production and confirm the design firstly for the mass production.
Q6:It is my first time to purchase goods from china,how do i do?
Do not worry,Aucox has 10years export experience to all over the world,also has professional sales team,
we also have agent in Russia,Algeria,Pakistan,Peru,Vietnam,etc.
Q7:How to pack the machine?
we use wooden box to packge the machine to protect them to be safe
Q8.I do not know chinese,will the operation panel in english or spanish or other?
Yes,all our machine are with Chinese and English,If you want only English or Spanish or other,
we also can customize to you,but lead time will be a little longer.
