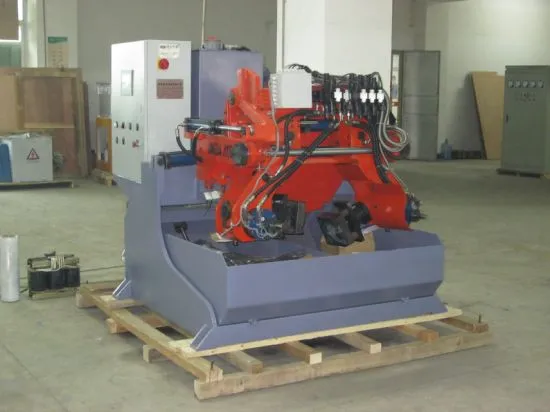

Copper Gravity Die Casting Machines (JD-AB500)

Product Description

√ Over 20 Years == √ Factory == √ Own Exporting License == √ Quality Control == √ Competitive Price == √ Own Technology == √ OEM==Short Delivery Time
manufacturing & processing machinery,pressure die casting machine,die casting machine,casting machine,tapping machine,drilling and tapping machine,industry machinery,high quality machine,metal casting machine,gravity die casting machine,sand casting machine
Jingda Foundry Machinery Manufacturer,Metal Gravity Die Casting Machine for water meter and faucets (JD-AB500) China
Over 20 Years Factory,Own the Domestic First-Class Team and Professional Design Team,Integrating production ,sales and after-sales ,Own Exporting License,High Quility Products,Competitive Price,OEM,Timely Delivery.
1 . ADVANTAGES: Over 20 years experience in brass/Aluminum casting machine, core shooter machine , low pressure casting machine etc . OEM, Develop& Design Products/ Molds as needed Short delivery time( 7--10 days) Instant after sale service on line. the machine provide 12 Months after-sales maintains . Provide free training to client till skillful operation Easy to operate the machine
2. Introduction

1. Application
Gravity Die Casting MachineJDAB500 is used for producing copper alloy castings of large and medium size or castings of small size whose molds contains several cavities.
2. Machine components
The machine consists of three parts, such as mechanical part, pneumatic part and electrical part. Material used in mechanical part is well-selected steel. Both pneumatic and electrical part use products of world-famous brands. Therefore we can assure you that our products are of high quality.
3. Main specifications and technical parameters:
(1) Maximum outlined diameter of mold: 500 mm
(2)Maximum weight of mold: 150 kg
(3)Maximum distance of mold baseplate: 510 mm
(4)Maximum clamping stroke: 270 mm
(5)Angle range of lateral casting: 0~90 deg
(6)Angle range of pre-casting: 0~110 deg
(7)Angle range of mold immersion: 0~90 Centigrade
(8)Oil pressure: 50~70 bar
(9)Power capacity: 5.25 kw
(10)Three phase power: 380 V/ 50Hz
(11)Oil tank capacity: 220 L
(12)Capacity of mold immersion tank: 750 L
(13)Machine weight: 2000 kg
(14)Machine size( L× W× H): 1650mm× 2300mm× 1720mm

The advantage of gravity casting technology
Item	Gravity casting technology	Foundry casting technology
Product quality	The structure of the casting is compact and both of its inside and outside surfaces are smooth . The sizes of castings are concordant . The fine machining speed is fast and polishing rate is high .	There are some dregs and sands on the surface of the castings. Its structure is loose and both of the inside and outside surfaces are rough. The sizes of castings are not concordant . The fine machining speed is slow and polishing rate is low.
Qualified rate	92%~98%, high qualified rate	High rejection rate
Labor productivity	It needs only 7 persons .	It needs more than 14 persons .
Pollution situation	Casting temperature is low . Its pollution and noise are also low .	It produces smoke . Its pollution and noise are high .
Operation situation	Simple and easy learned operations and skills can be mastered in 2 hours. Its labor consumption is low .	Its operation is difficult to learn, and it is high in both labor consumption and labor intensity
Cost accounting	Its labor cost is low . Copper consumption and spoiled product r ate are low .It can increase production quantity and product quality is stable .	Its labor cost is high .Copper consumption and spoiled product rate are high . Production quantity is low and product quality is not stable

5.Working Process:
Put the sand core -----close the Mold ----Melting Copper -----
---Soak the mold and take out the finished product -----
--open the mold and get out the product ----Flip to horizontal
6. Products details Photos
7 .Certificate
8.Our customer

---
