Automatic Iron Pipe Punching Tool

Product Description

Product details

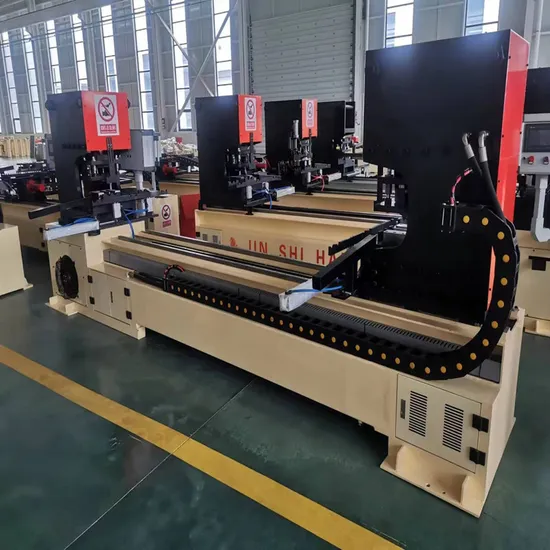

Scaffolding Cross Brace Hydraulic PRESS-forming and Punching Machine
The equipment is used for the scaffold inclined tie rod automatic flattening, punching a forming machine, stamping two pieces each time. The equipment adopts PLC control to complete the measuring, flattening and punching of steel pipe in one time. Ensure high working efficiency and workpiece accuracy.

Usage:
It is used for press-forming and punching the both end of scaffolding diagonal brace
Scope of application (Can be customized) :
Tube length: 1-3m. Tube diameter: # 38 or # 42. Tube thickness: 2-3mm.
Punching diameter: #17
4-Features: It can automatically produce two diagonal brace once. The press-forming and punching are achieved at the same time. It is high-efficient and well-proven machine. This machine adopts microcomputer control, which enables multiple groups of programs and multi angle setting, so that it is easy to operation. It can automatically feed and unload, which reduce the working strength. Parameters
Host Part

High strength punch and mold core
Pneumatic Pressure	0.2-0.8MPa
Max Mpa	21MPa
Tubing Pressure	34MPa
Host Part Size: L*W*H(mm)	4000*900*1650

Main Configuration

Name	Model	Name of Supplier
Main Body	Steel plate and square pipe welding
Hydraulic System Pneumatic System	Oil tubing, oil cylinder, oil pressure pump, solenoid valve Cylinder and solenoid valve	HUADE, TWSNS
Electrical Control System	Contactor, button switch, PLC, touch screen, switching power supply relay	Well-known Chinese Brand- Delta
Hydraulic motor	Three phase asynchronous motor	Well-known Chinese Brand
Slideway, slider	35type	TBI,HIWIN
Mould of press-forming and punching	Precise machining of wire cutting and NC Milling

Company honors and qualifications:
Company site:
Corporate office area:
With high quality products and excellent reputation, Golden Lion sells well all over the world, helps enterprises solve production problems, helps enterprises develop, and establishes long-term cooperative partnership with well-known enterprises at home and abroad. Your success is the eternal pursuit of Golden Lion welder! Let us hand in hand, sustainable development, create brilliant!
Frequently Asked Questions
If I have some problems, what should I do?
-You can contact our salesman directly, our engineer will check the problem. We Provide proofing service before sale and free technical training, online technical guidance, video guidance
How long is the warranty?
-We offer a 1-year warranty(except for the consumable parts like Lens). The supplier will provide detailed information as soon as possible.
If you need help, we have a professional team to help you.
If you have other mold needs technical instruction and video instruction are also provided.
Packaging&Shipping
1. Cleaning machine.
2. Wrap all the machine and parts with bubble film and plastic film.
3. Forklift the packed machine to the container.
4. Choose the optimal routes and transportation modes according to the distance.
If you have any questions,please contact us!

---
