Anon Maize Harvesting Machine High Quality 2/3/4 Rows Corn Harvester and Combine Harvesting Machine

Product Description

Anon Maize Harvesting Machine High Quality 2/3/4 Rows Corn Harvester and Combine Harvesting Machine
Anon Maize Harvesting Machine High Quality 2/3/4 Rows Corn Harvester and Combine Harvesting Machine

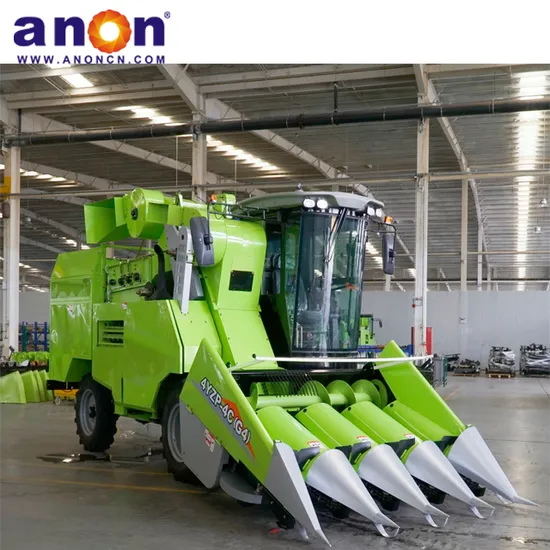

ANON AN4YZP-4C Corn harvester is a machine that used to pick the Corn cob. The combine harvester combines three separate operations: finish picking, peeling and returning the stalk to the field at one time when the corn is mature.

A corn harvester was used to pick ears under the growing condition of corn. Under the action of picking roller and picking board, the stalk was pulled off and The maize cob wsa transported to the peeler for peeling. At the same time, the rotate cutter to cut the straw from the root and smash it back to the field.

Anon Maize Harvesting Machine High Quality 2/3/4 Rows Corn Harvester and Combine Harvesting Machine
Product feature
1. strong power,flexible and efficientWith 240 horsepower engine, full of power; Short wheelbase design for front and rear wheels,Small turning radius,flexible steering, high operating efficiency2. Harvest on the slope, handle it wellFour-wheel drive, short body, low center of gravity.The slope harvest is safer and more passable.3. Lowest corn kernels lossThe structure of the grain fan is optimized, the air volume of the grain fan is adjustable, the grain loss is reduced, and the grain cleanliness of the recycling box is cleaner4. Easy to operate and comfortable to driveOptimized control mechanism,steering wheel Angle is adjustable,Extended seat, driving experience is more comfortable.
5.Cutting table
520mm, 600mm, 630mm,3 kinds of row spacing corn machine cutting table, row spacing more adaptability, higher efficiencyThe cutting table adopts six-edge composite sawblade plate to pull the stalk, and the pulling roll is lengthened by 100mm. The straw is more smooth, the cutting table is not blocked, the corn kernel loss is less, the harvest speed is fast and the efficiency is high
6.Grain Capacity
The grain bin is double oil cylinder unloading grain, unloading grain height reaches 2.3 meters, increase the grain bin, volume of 2.8 cubic meters, reduce the number of unloading grain, greatly improve work efficiency
ANON Maize Harvesting Machine High Quality Tractor Corn Harvester and Peeler Machine Maize Combine Harvesting and Peeling Machine
Specification:

Model	AN4YZP-4C
Structure type	Self-propelled
Power	150
Rows	4
Size	6100×2710×2990mm
Working Efficiency	0.4-0.65(hm2/H)
Working Width(mm)	2240
Mini clearance(mm)	260
Max unload height(mm )	2300
Row distance(mm )	530-650
