RS232 4CH CCTV Camera Passenger Counter With Mobile Dvr

Product Details

Product Description

Product Description
Power Supply:Type:USB Port:RS232/RS485:Sensor Type:Operation Interface:Camera:AV Out:Installation:Protocol:Data Transmission:Application:High Light:

8V-36V DC Voltage	Passenger Counter For Bus
Standard 2.0	Supported
Video Counting, 98% Accuracy	OSD With Mouse And Remote Control
Binocular Cameras&Monitoring Cameras	4CH CCTV Cameras Inputs+4 Channel Counting Cameras Inputs
Vehicle Door,mounted On Ceiling	Support RS232/485 And 3G Communication Serial
3G, 4G, GPS, WIFI ,GPRS, RS232/485, HDD Storage	City Bus, School Bus And Other Transport Vehicle Ect.
bus passenger counter, cctv mobile dvr

Product DescriptionNew Version 4CH 3G People Counting Camera Mobile DVR System all in one for Passenger bus
4CH Counting MDVR system Product details
1. Main Unit(below)

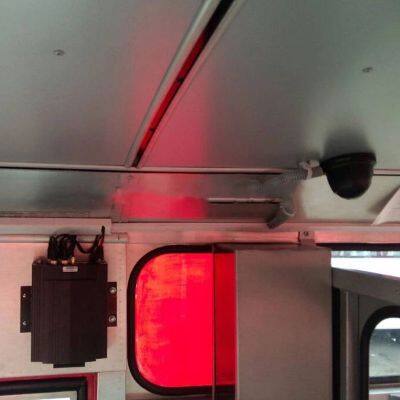

Counter Processor(brain), Mounted at the bottom of seat or ceiling of bus, process and calculate the data, send to HDD storage or 3g/4g
2. 2 Binocular Cameras for front and back door
Mounted on the ceiling of the doors, counts passengers get in or out of the bus.
3. 4 CCTV Cameras
4. One car monitor for Option
Main Parameters
1.1 Counting camera
Image Sensor:1/3 SONY
CCD TV System: PAL/NTSC
TV Lines:700TVL
Image Output: Synchronous sampling
output Lens’ Spacing:5MM
Len:960*576 Pixel,3.6 mm (2.8mm/3.6mm/4mm/6mm Optional)
Viewing Angle:55 degree
Installation height Range:2.1M~2.3M(3.6MM len), 1.9M~2.1M(2.8MM len),
2.3M~2.5M(4MM len)
Detecting Door Width Range:0.4M~1.2M
White Balance: Auto Shutter:1/50-
1/80000(s) 1/60-1/80000(s) Frame
rate:25 FTPS
Video Output Interface: Composite video output, 75Ω 1Vp-p
Aviation Gain: Auto
SNR:＞48db
Power Supply:DC12
V Power:≤1W
Working Temperature:-30～+55℃
Relative Humidity:10%～90% Not condensed
Cooling: no active cooling, passive structure with heat
dissipation Product Size:155(L)*50(W)*55(H)MM
Weight:0.32KG
The Vieo- Counting Bus People Counter(VPC) with binocular lens is developed based on advanced Video Counting&image analysis technoloy.
It judges passenger's number by capturing human characteristics such as head, shoulders, body and body's get-on& get-off Movement characteristics and obtains accurate counting results by high-speed DSP intelligent algorithm.
After many year's improment and development, the core calculation has been successfully used in different application scenarios and vehicles. Normally the accuracy of statistics is over 98% and with crowded circumstances, the accuracy is over 95%.
It can automatically filter backpack, luggage etc.
3G Flowing Statistics Bus Passenger Counter System can support 4 channels input video, AHD 720P or 2 channels AHD720P + 2 channels D1 cameras or all D1 cameras; GPS location tracking; 3G/4G live video streaming view; HDD (max 2TB)+SD(max 128GB), Counting people getting on and off the bus, alarm trigger like over speed,harsh brake, RS232/485 for extension functions like oil sensor, G-sensor, lan port, etc.
1.3 Main MDVR

Item		Description
OS		Linux3.0
Graphics Operation Interface		System parameters can be set through external display and remote controller
Security Management		2-level management for user password, administrator password, supporting encrypted transmission
Video and Preview	Video Input, Output	8-channel video input, 1channel video output; 1.0Vp-p, 75Ω
	OSD	Character superposition function, information superposition of time and date, device ID and GPS, etc.
	Video Compression Format	Compression coding. Applying Hisilicon hi-performance processor.
	Dual-Stream	Supported
	Preview Function	Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images
	Frame Rate	PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel
	Resolution	AHD 720P,D1, HD1 ,CIF 4channel
	Quality	Grade 1 to grade 8 for selection (1 is the best)
	Bit Rate	CIF: 300Kbps ~ 1.2 Mbps, 8-level bit rates for selection HD1: 500Kbps ~ 1.5 Mbps, 8-level bit rates for selection D1: 600Kbps ~ 2Mbps, 8-level bit rates for selection 720P: 800Kbps ~ 4Mbps, 8-level bit rates for selection
Audio	Audio Input, Output	4-channel input, 1-channel output
	Compression Format	G.726 coding
Recording	Storage Medium	Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology;
	File Format/ System	Special file system
	Video Strategies	Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
	Video Search	Searching by time, type, storage device and other conditions
	Video Playback	Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files
		Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time
Alarm	Alarm Input/ Output	8-channel on/off signal alarm input, 2-channel on/off signal alarm output
	Alarm Recording	duration of recording after alarm can be adjusted from 10s ~ 999S
	Storage Space Alarm	Supporting settings for alarm of storage space
	Function Alarm	GPS overspeed alarm, acceleration alarm, motion detection alarm
counter	Passenger Video counter	Two doors Synchronous statistics. the recognizing accuracy was more than 95%
Communication Ports		485,RS232, RJ45 10M/100M self-adaptable network interface
Wireless Transmission (Optional)		Supporting Wi-Fi;
GPS (Optional)		Supporting external GPS
PTZ Control		Supporting PTZ control realized by local;
Parameter Configuration		Supporting parameter configuration functions for mobile DVR coding channel;
G-Sensor		Embedded
System Upgrading		Supporting SD card, hard drive upgrading and remote upgrading
Power Supply and Power Consumption	Power Supply	1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off
	Input Voltage	DC:+9V ~ +36V
	Output Voltage	+12V@5*0.5A;
	Power-off Protection	With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure
	Power Consumption	<10W in normal operation;	Operating Environment	Temperature	Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃
Humidity	10% to 95%
Dimensions		160(W) x62(H) x200(D) mm.
Weight		Net: 2020g, Gross: 3500g

FAQ
1)What purpose does the sensor serve?
Re:The sensor is designed to count the number of bus passengers getting on or off.
All passengers are counted regardless of their payment method (cash, pass, welfare ticket, or discount ticket).
2)How is it used?Re:The sensor can be used to get information on the usage status and crowding of bus passengers.
Take advantage of the sensor's abilities to create an optimum time table by knowing the number of passengers getting on or off at a particular stop, at what times, on which lines, and in which zones.3)What type of sensor is it?Re:The sensor (camera) is installed in the bus ceiling near an entrance and exit.
It is compact and easy to install.
A single sensor can count people getting both on and off.4)Passenger counter and surveillance passenger cameras work with the same device or they work with their own one?
Re: we actually have 3 different models.
Model A is basic counter device
Model B is GPRS counter
Model C is HDD mdvr &counter all in one kit.
For model C, they supports 4ch recording, means you could connect max 4 another surveillance cameras with our main unit, so totally 2 counting cameras+ 4 surveillance cameras+ Main unit.
Please contact us for specific manual in details

---
