Portable Mobile Small Mini Diesel Construction Column Electric Conveying Pumping Hbt40/8/45 Cement Truck Mixer Stationary Hydraulic Concrete Pump

Product Description

Product Description
Introduction Of Portable Mobile Small Mini Diesel Secondary Construction Column Electric Power High Efficiency Hbt40/8/45 Cement Mixer Stationary Hydraulic Concrete Pump
Concrete pump is a kind of equipment used to convey concrete, which is conveyed by pressure from mixer truck or mixing station to the construction site. It has the following features and functions:
1. Efficient and fast: the concrete pump can continuously transport concrete with high flow and pressure, which greatly improves the construction efficiency.
2. Flexible and adjustable: Concrete pumps can usually adjust the delivery speed and length to suit different construction needs.
3. High precision and uniformity: The concrete pump can achieve uniform delivery of concrete through stable pressure and flow, ensuring the quality and consistency of concrete during construction.
4. Applicable to various projects: Concrete pumps are widely used in construction sites, bridges, tunnels, docks, water conservancy projects and other construction sites.zmwm15
Product Parameters

Parameters Of Portable Mobile Small Mini Diesel Secondary Construction Column Electric Power High Efficiency Hbt40/8/45 Cement Mixer Stationary Hydraulic Concrete Pump

Maximum Theoretical Concrete Delivery Volume	35m³/h
Maximum Pumping Concrete Pressure	10MPa
Distribution Valve Form	S-pipe valve
Concrete Conveying Cylinder Bore*Stroke	Φ160*1000mm
Outlet Diameter	Φ150mm
Rated Power	4108
Rated Speed	1480r/min
Hydraulic Circuit Form	open circuit
Pumping Xiyong Oil Pressure	28MPa
Stirring System Oil Pressure	8MPa
Hydraulic Tank Volume	240L
Maximum Conveying Vertical Distance	120m
Maximum Conveying Horizontal Distance	250m
Maximum Particles Allowed	40mm
Dimensions L*W/*H	4300*1750*1850mm
Total Mass	3300KG

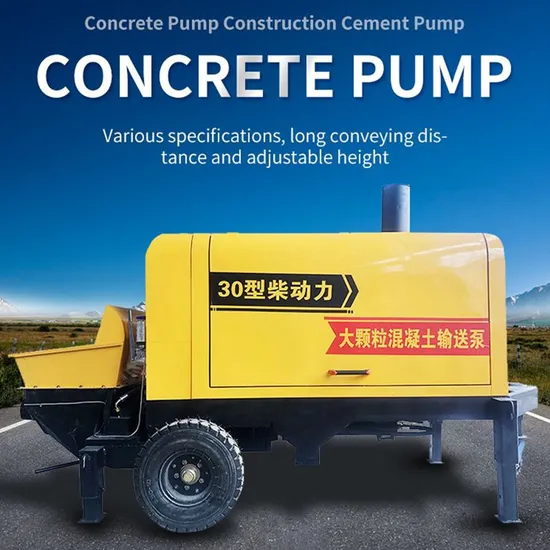

Detailed Photos
Photos Of Portable Mobile Small Mini Diesel Secondary Construction Column Electric Power High Efficiency Hbt40/8/45 Cement Mixer Stationary Hydraulic Concrete Pump
FAQ
FAQ
1.Q: Are you a manufacturer or a trader?
A: We are a professional manufacturer with our own research and development team and sales team, providing one-stop services.
2.Q: What is your delivery time?
A: Usually, we conduct inventory of goods. If we have inventory of products, the delivery time is 5-10 days after receiving the deposit. If we do not have inventory of products, we will immediately arrange production with a delivery time of 30-45 days, depending on the order quantity.
3.Q: Do you provide OEM/ODM services?
A: Yes, please provide me with the necessary information. We provide customized services to meet the different needs of global customers with different budgets.
4.Q: Do you have a CE certificate?
A: Yes, most of our products have CE certificates.
5.Q: How do we ensure quality?
A: The final inspection is always carried out before shipment.
6.Q: How to install the device after purchase?
A: We will provide professional installation videos for explanation. Provide a manual at the same time.
7.Q: Do you provide a guarantee?
A: Yes, our product has a one-year warranty. Provide after-sales service support and technical support.
8.Q: What is your minimum order quantity?
A: 1 set.
