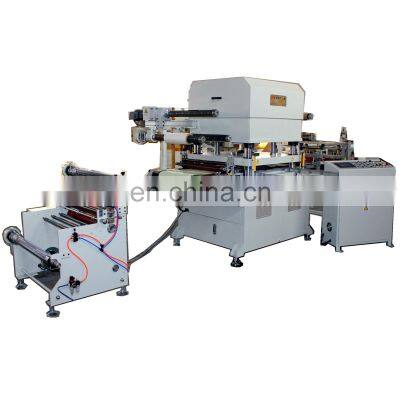

auto rubber foot pad roll die cutting machine
1. Electronic materials applicable to stamping foil, PET, protective film Mylar film, and so totally removed or semi-cutting,
stamping of precision molding components.
2 .Launched board fuel tanks used launched, and out of the buffer zone. A protective film infrared control system uses PLC + man-machine control
3 . Electronic positioning precision accuracy, precision can be controlled from the 0.01-0.03 mm.Launched precision can be controlled from the board in the 0.02-0.05 mm.
Precise four-column automatic balance connecting rod design, each cutting position consistent depth
Automatic cushioning design, multi-layer cutting, there is no error size between upper and lower layer .
4 Steel fuselage of good and reasonable rack structure, using welded steel plate, the complete elimination of internal stress,
structural precision, the body strong, uniform load,
Applied to electronic enterprise, handbag factory, toy factory, shoes factory , carton factory enterprise broadsword of cutting
operation model
felt full die cutting
Round Heavy Duty Felt Furniture Pad die cutting
automatic pad disc kiss cutting
Specification
item
| value
|
Applicable Industries
| Manufacturing Plant
|
Showroom Location
| None
|
Condition
| New
|
Type
| Die-cutting Machine
|
Computerized
| Yes
|
Place of Origin
| China
|
| Jiangsu
|
Brand Name
| DP
|
Voltage
| 380V50HZ
|
Dimension(L*W*H)
| 2*2.5*2m
|
Weight
| 1500kg
|
Warranty
| 12month
|
Production Capacity
| 100 m/min
|
Key Selling Points
| High-accuracy
|
Max. workable width
| 650mm
|
Machinery Test Report
| Provided
|
Video outgoing-inspection
| Provided
|
Marketing Type
| Ordinary Product
|
Warranty of core components
| 1 Year
|
Core Components
| PLC
|
PLC Brand
| Schneider, Omron, MITSUBISHI, Siemens
|
Ton
| 40T
|
Web guide system
| yes
|
application
| auto rubber foot pad roll die cutting machine
|
die cutting area
| 650*600mm
|
cutting pad type
| rubber/felt/foam/leather
|
Company Profile
Usage:
1.Roll die cutter machine adopts accurate flatten die-cutting system, material towing controlled by computer, web-guiding by three photoelectric eyes. Die cutting, waste rewinding and finished -material rewinding are finished in one process.It is suitable for die cutting of adhesive paper, dacron label and laser hologram mark. This is the ideal association equipment for the flexo printing machine, silk screen printing machine , gravure printing machine and hologram mark printing machine and it's the most efficient machine for printing house .
Technical Datas :
| 1. | Maximum cutting force | 400KN |
| 2. | Cutting speed | 0.1m/s |
| 3. | Stroke range | 0-140mm |
| 4. | Distance from press board to working table | 30-145mm |
| 5. | Motor power | 3KW |
| 6. | Square of the working table | 580*500mm |
| 7. | Dimension of the machine | 1860×2960×1500mm |
| 8. | Weight of the machine | About 2000KG |
| 9. | Voltage | 380V/50HZ |
| 10. | Oil volume | 150L
|
>>
