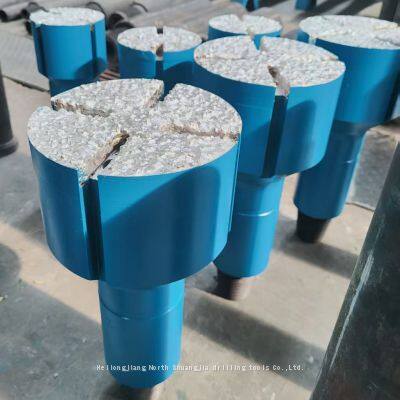

Flat bottom junk mill

Product Details

Product Description

Product Description
Phone no./Whatsapp/Wechat: 0086 15145386673
Specifications： All specifications
Remarks： Size, connection;If size other than above specification, please specify clearly.
Milling tool is a kind of tool for milling the fishes. Such as bits, cone, cutter gauge, slip elements, swivel wash pipes, subs, parts of deep-well pump, etc.
The flat bottom and concave junk mill milling the fishes with the effect of drilling pressure by the YD alloy and anti-abrasive material on its bottom surface. The junk was carried out of well by the drilling fluid.

Type	OD mm（inch）	Connection API	OAL mm（inch）
PMX105	105(4-9/64)	NC23	343(13-1/2)
PMX114	114(4-1/2)	NC26	406(16)
PMX140	140(5-33/64)	3-1/2REG	445(17-1/2)
PMX195	195(7-11/16)	4-1/2REG	540(21-17/64)
PMX215	215(8-15/32)	4-1/2REG	540(21-17/64)
PMX311	311(12-1/4)	6-5/8REG	595(23-27/64)
PMX406	406(16)	7-5/8REG	650(25-19/32)

---
