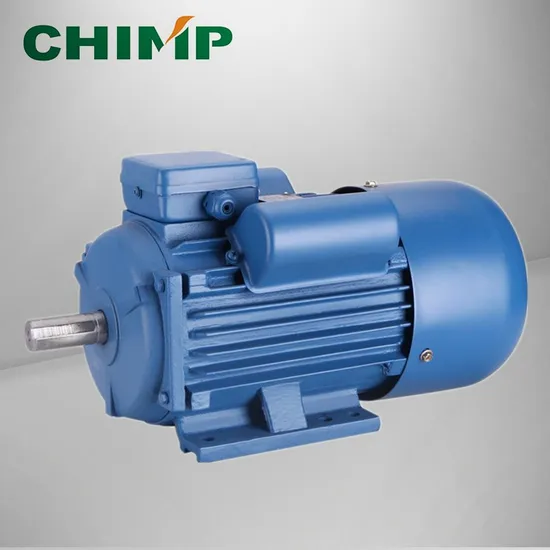

Yc Double Starting Capacitor Single-Phase Electric Motors

Product Description

YL double capacitor Single-Phase Cast iron or al. casing Electric Motors
Product Description Feature Yc series Single-phase two-value capacitor asynchronous motor is GB combined with international standards for design and manufacturing. Which is characterized by excellent starting and running performance. Low noise,small vibaration,compact structure,light weight and easy maintenance characteristics. Widely used in air compressors,pumps and other Mechanical equipment.
Rated Parameters: Base Center Height:71-100mm Power Range: 0.25-3.7kW
Rated Voltage: 220V Rated Frequency: 50HZ (or 60HZ)
Nsulation Class: B Protection Class: IP54 (or IP55)
Work System: S1
Mounting Structure:
B3 Frame without foot cover end flange
B35 Frame with foot cover end flange
B5 Frame with foot cover end flange

Type	Output	Rated Current	Rated Speed	η	Power Factor	Locked-rotor current Rated current	Locked-rotor torque Rated troque	Pull-out torque Rated torque
	kW	IN(A)	nN(rpm)	%	(cos Φ)	Tst/TN	Ist/TN	Tmax/TN
YC711-2	0.18	1.9	2800	63	0.70	3	6.5	2.0
YC-712-2	0.25	2.4	2800	65	0.72	3	6.5	2.0
YC80A-2	0.37	3.5	2840	66	0.77	3	6.5	2.0
YC80B-2	0.55	5.04	2850	67	0.74	3	6.5	2.0
YC80C-2	0.75	6.68	2850	68	0.75	3	6.5	2.0
YC90S-2	1.1	8.93	2850	70	0.80	2.8	7	2.0
YC90L-2	1.5	11.4	2870	73	0.82	2.8	7	2.0
YC100L-2	2.2	16.5	2900	74	0.82	2.5	7	2.0
YC112M1-2	3	21.4	2900	76	0.84	2.2	7	2.0
YC112M2-2	3.7	24.8	2900	79	0.86	2.2	7	2.0

EXPLODED VIEW:

NO.	Name of parts		NO.	Name of parts
1	Shaft head sheath		23	Gasket
2	Bolt		24	Connect strap
3	Spring washer		25	Screw
4	Front bearing cap		26	Screw
5	Wave washer		27	Terminal cover
6	Bearing		28	Capacitor cover
7	Motor housing		29	Capacitor
8	Wire sheath		30	Nameplate
9	Sheath nut		31	Stator
10	Rubber sealing washer		32	Key
11	Terminal box		33	Rotor
12	Grounding mark		34	Insulation sleeve
13	Terminal board		35	Bearing
14	Screw		36	Back cover
15	Screw		37	Protection cover
16	Screw		38	Centurifugal switch
17	Gasket		39	Screw
18	Gasket		40	Bolt
19	Terminal		41	Fan
20	Terminal		42	Circlip
21	Nut		43	Fan cover
22	Nut		44	Screw

FAQ
Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container. However, we accept the small qty for trial order to check quality.

Q: Is it acceptable to make customers' own brand?
A: Yes, sure. OEM is also our service scope.

Q: What are your payment terms?
A: 30% T/T as deposit, 70% against documents, or L/C at sight.

Q: How long is your warranty?
A: One year!

Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
Contacting information:
TAIZHOU QIANTAO PUMPS CO.,LTD(CHIMP)



WEB: chimppumps.en.made-in-china.com

---
