Injection Recycle Moulding V0 Grade Glass Fiber Granules Pellet Resin PBT for Building Chemical Textile Filament Raw Material Plastic Products Auto/Spare Part

Product Description

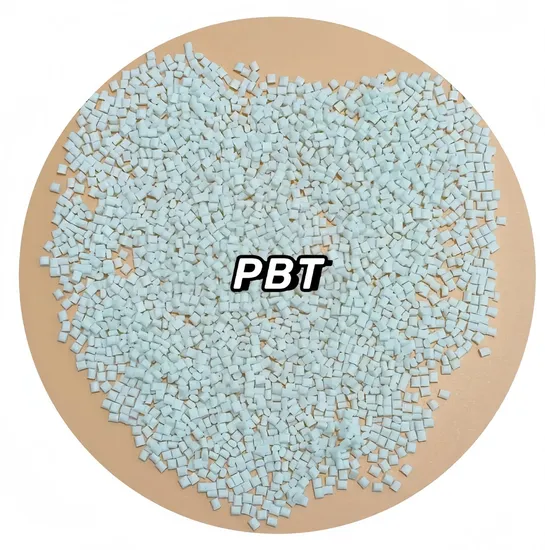

PBT	T100
Properties	Rated value	Test Method
Physical properties
Specific Gravity	1.31 g/cm³	ISO 1183-1
Melt index, mass(2.16 kg;Temperature; 250 °C)	80 g/10min	ISO 1133
Die shrinkage, parallel	1.8 - 2.0 %	ISO 294-4
Mold shrinkage, vertical	1.8 - 2.0 %	ISO 294-4
Mechanical properties
Tensile Strength(50 mm/min)	50 MPa	ISO 527-2
Tensile Modulus(50 mm/min)	7.50%	ISO 527-2
Flexural Strength(2 mm/min)	65 MPa	ISO 178
Flexural Modulus(2 mm/min)	2100 MPa	ISO 178
Charpy Notched Impact Strength(23 °C)	4.5 kJ/m2	ISO 179
Charpy Unotched Impact Strength(23 °C)	120 kJ/m2	ISO 179
Thermal properties
Heat Deflection Temperature
Unannealed;1.8 MPa;3.2 mm	55 °C	ISO 75-1,-2
Unannealed;0.45 MPa;3.2 mm	150 °C	ISO 75-1,-2
Annealed;0.45 MPa;3.2 mm	183 °C	ISO 75-1,-2
Vicat temperature(50 °C/h;5 kg)	172 °C	ISO 306
Flame retardant rating	HB	UL 94
Electrical properties
Volume resistance	1.0e+16 ohms·cm	IEC 60093
Dielectric constant(50 Hz)	3.8	IEC 60250
Dielectric loss (dissipation factor)(50/60 Hz)	0.02	IEC 60250
Dielectric strength, oil	18 kv/mm	IEC 60243-1

Processing Conditions
Drying temperature	120 - 140 °C
Drying time	3-4 hrs
Melting temperature	250-280 °C
Nozzle temperature	250-280 °C
Mold temperature	30-80 °C
Injection pressure	70-120 MPa
Back pressure	6-18 MPa
Screw speed	< 100 rpm

Why choose us
More Related Products
Company Profile
Suzhou Shituo New Material Co., Ltd. The company was established in 1998; Registered capital of 100 million RMB, 30 minutes from Shanghai high-speed rail; 1 hour from Nanjing,is a High-Tech Enterprise specializing in the production and R&D of technique compounds based on PA6, PA66, PP, PBT, PC, ABS, PC/ABS, HIPS, AES, PVC, TPE, disposable formwork (for lightweight fill applications) and reusable formwork (for modular applications). With two advanced high-speed twin-screw mixing equipment and one professional sample production line, our annual sales reached 10, 000 tons with actual production capacity reaching up to 15, 000 tons. We also have an independent laboratory with a full range of testing machines and a team of professional engineers. Our company owns ISO9001: 2008 and other quality system certifications, we can also supply the material with RoHS, REACH, and SGS certificates. We are confident to provide high-quality materials which can fully meet different clients′ expectations. Our materials are now widely used in automotive, household appliances, electronic appliances, telecommunications, and other industries.
Quality Inspection Center
Relevant finished product
Packaging & Shipping
FAQ
1. Q: Are you a manufacturer or a trading company?A:We are a company with integration of industry and trade.2. Q: Can you do OEM?A:Yes, we can do OEM products. Engraved your logo on the products and printing on the customized packaging 3. Q:And Logo printing?A:We can print your logo in the products as you required.4. Q:How can I get some samples?A:1, We are honored to offer you samples. New clients need pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for large order.
2,Regarding the courier cost: you can arrange a RPI (remote pick-up) service upon FedEx, UPS, DHL, TNT, etc. to have the samples collected; or inform us your DHL collection account. Then you can pay the freight direct to your local carrier company.5. Q:How does your factory do regarding quality control?A:1) Skillful workers care every details in handling the producing and packing processes.
2) Quality Control Department is specially responsible for quality checking in each process.

---
