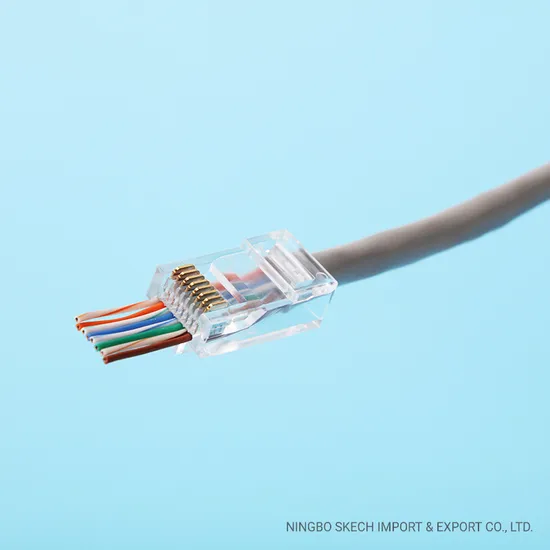

UTP RJ45 Pass Through Plug Ethernet Network Modular Plug 8p8c Cat5e/CAT6/CAT6A RJ45 Crystal Heads Connector

Product Description

Product Description UTP RJ45 Pass Through Plug Ethernet Network Modular Plug 8P8C Cat5e/CAT6/CAT6A RJ45 Crystal Heads Connector
The Modular Plug CRJ45 UTP& FTP CAT5E , CAT6 and CAT6A is widely used in Telephone, Telecom, Computer , Server Rack , Network Cabinet,Ethernet and integrated wiring Network solutions etc.
Detailed Photos

Product Parameters

Features
Part Number	SKE-8P8C-PTC-F/R (F- square hole; R- round hole)
Cable Hole Shape options	F- square hole; R- round hole
Plug Type	RJ45
Category Option	CAT5E, CAT6, CAT6A
Position/Conductor	8P8C
Terminal (Contact) shape options	2 Tips or 3 Tips (forks)
Designed For	Data and Voice applications
Color	Transparent
Compatibility	Round (UTP) Stranded Cable, 8P8C Flat Cable
Electrical
Current Rating	1.5A at 25ºC
Voltage Rating	150VAC Max
Insulation Resistance	≥1000 MΩ Min. at 100VDC
Contact Resistance	≤20 mΩ Max.
DC/AC Volt Endurance	1000VAC RMS or 1500VDC at 0.5mA 50Hz -60Hz 1min.
Mechanical
Plug Insertion Life	≥750 Cycles Min
Plug Retention Force	50N for 60s±5s
Operating Temperature	-25~+55°C
Relative Humidity	<80% (at 25°C)
Storage Temperature	-10°C to +40°C
Material
Housing	Poly carbonate (PC) UL 94V-0 or UL 94V-2
Contacts	0.35mm Phosphor bronze, Gold over Nickel.
Gold Palting options	GF inch ; 3u inch; 6u inch; 15u inch; 30u inch and 50u inch

Certifications ISO, CE RoHS
Packaging & Shipping Packaging: Standard Export Carton
Shipping: By Sea, By Air , By Train and Express.

Our Advantages a. Has its own production equipment,own mold development tooling workshop and own testing lab facilities,
We have good capacity of production.
b. Good service, high quality and cheap price.
c. Fast delivery time.
d. New design Accepted: As your requirement.
How To Buy From Us?1. Please confirm the model numbers and quantities that you would like to purchase by contacting our sales person. 2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge by courier (DHL,Fedex,TNT,UPS), by air or by sea if required. 3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap. 4. As soon as the goods are shipped out, we will let you know the tracking number.

---
