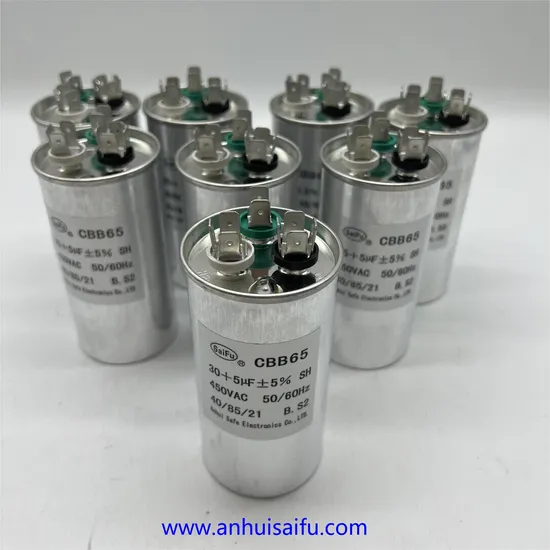

30+5UF 30/5 Mfd ± 6% 370V/440V Cbb65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight

Product Description

30+5uF 30/5 MFD ±6% 370V/440V CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight
Outline Drawing:
Features: Widely applied to the starting and running of AC single-phase motors at 50Hz/60Hz frequency power Self-healing property Good stability and reliability Safer with Explosion-proofed design Round capacitor, can be provided oval capacitor Single capacitor, can be provided double capacitor Specifications:

Reference standards	GB/T 3667.1( IEC60252-1)
Climatic category	40 / 70 / 21,40 / 85 / 21
Class of operation	Class B (10000h) Class C (3000h)
Class of safety protection	S2
Voltage range	250VAC,370VAC,440VAC,450VAC, 660VAC
Capacitance range	1~120μF
Capacitance tolerance	± 5% , ± 10%,± 15%
Dissipation factor	20 x10-4 (100Hz,20°C)
Test voltage terminal to terminal UTT	2 Un for 2 seconds
Test voltage terminal to case UTC	(2Un+1000)VAC or 2000VAC- 50Hz for 60 seconds
Insulation Resistance	≥3000s (100Hz,20°C,1min)

Decription:
CBB65 Motor Run Capacitors (Round-Shaped, Single Capacitance Value or daul Capacitance Value)
CBB65 Motor Run Capacitors feature a low-loss, self-healing Metalized Polypropylene Film dielectric system, which are castor oil-filled.The motor run capacitors with Single capacitance value are offered in voltages ranging from 240 through 660 VAC and with Single capacitance range of 0.5 to 120 microfarads. The motor run capacitors are designed to operate in continuous duty over a broad temperature range from -40°C to +85°C with full rated 50/60 Hz. AC voltage applied. CBB65 motor run capacitors offer outstanding electrical characteristics, high capacitance stability over time and temperature, and very low internal power losses (Dissipation Factor). Case is aluminum round-shaped cans and standard terminations are 2*4 terminals. it also have 1*1pin,2*2pin,4*4pin,2*3*4pin or wire.
CBB65 capacitor has advantages of small volume, light weight, low dissipation, high insulation resistance, good self-healing character, anti-striking current, strong over-carrying capacity, and steady electricity performance, and reliable safety with inner anti-explosion, etc.
Application:
Possible applications include; electric motor, pumps, air conditioning, compressor, lighting, and general purpose AC applications.
Dimensions(mm):
Single Type CBB65 AC Motor Capacitors:

NO.	production specifications	terminal	size
1	CBB65-450VAC 5μF ~9μF	1*1 or 2*4 or 2*2 or 4*4	φ40*60
2	CBB65-450VAC-10μF	1*1 or 2*4 or 2*2 or 4*4	φ40*60
3	CBB65-450VAC-12.5μF	1*1 or 2*4 or 2*2 or 4*4	φ40*70
4	CBB65-450VAC-15μF	1*1 or 2*4 or 2*2 or 4*4	φ45*70
5	CBB65-450VAC-20μF	1*1 or 2*4 or 2*2 or 4*4	φ50*75
6	CBB65-450VAC-25μF	1*1 or 2*4 or 2*2 or 4*4	φ50*85
7	CBB65-450VAC-30μF	1*1 or 2*4 or 2*2 or 4*4	φ50*100
8	CBB65-450VAC-35μF	1*1 or 2*4 or 2*2 or 4*4	φ50*100
9	CBB65-450VAC-40μF	1*1 or 2*4 or 2*2 or 4*4	φ50*100
10	CBB65-450VAC-45μF	1*1 or 2*4 or 2*2 or 4*4	φ50*100
11	CBB65-450VAC-50μF	1*1 or 2*4 or 2*2 or 4*4	φ50*125
12	CBB65-450VAC-55μF	1*1 or 2*4 or 2*2 or 4*4	φ50*125
13	CBB65-450VAC-60μF	1*1 or 2*4 or 2*2 or 4*4	φ50*125
14	CBB65-450VAC-65μF	1*1 or 2*4 or 2*2 or 4*4	φ55*125
15	CBB65-450VAC-70μF	1*1 or 2*4 or 2*2 or 4*4	φ55*125
16	CBB65-450VAC-80μF	1*1 or 2*4 or 2*2 or 4*4	φ60*125
17	CBB65-450VAC-90μF	1*1 or 2*4 or 2*2 or 4*4	φ60*125
18	CBB65-450VAC-100μF	1*1 or 2*4 or 2*2 or 4*4	φ63.5*125
19	CBB65-450VAC-120μF	1*1 or 2*4 or 2*2 or 4*4	φ63.5*125

Dual Type CBB65 AC Motor Capacitors:

NO.	production specifications	terminal	size
1	CBB65 15+1.5uf	2*3*4 or 4*4*4	φ45*70
2	CBB65 15+3uf	2*3*4 or 4*4*4	φ45*70
3	CBB65 15+5uf	2*3*4 or 4*4*4	φ45*70
4	CBB65 15+7.5uf	2*3*4 or 4*4*4	φ45*70
5	CBB65 20+1.5uf	2*3*4 or 4*4*4	φ50*75
6	CBB65 20+3uf	2*3*4 or 4*4*4	φ50*75
7	CBB65 20+5uf	2*3*4 or 4*4*4	φ50*75
8	CBB65 20+7.5uf	2*3*4 or 4*4*4	φ50*75
9	CBB65 30+1.5uf	2*3*4 or 4*4*4	φ50*100
10	CBB65 30+3uf	2*3*4 or 4*4*4	φ50*100
11	CBB65 30+5uf	2*3*4 or 4*4*4	φ50*100
12	CBB65 30+7.5uf	2*3*4 or 4*4*4	φ50*100
13	CBB65 35+1.5uf	2*3*4 or 4*4*4	φ50*100
14	CBB65 35+3uf	2*3*4 or 4*4*4	φ50*100
15	CBB65 35+5uf	2*3*4 or 4*4*4	φ50*100
16	CBB65 35+7.5uf	2*3*4 or 4*4*4	φ50*100
17	CBB65 40+1.5uf	2*3*4 or 4*4*4	φ50*100
18	CBB65 40+3uf	2*3*4 or 4*4*4	φ50*100
19	CBB65 40+5uf	2*3*4 or 4*4*4	φ50*100
20	CBB65 40+7.5uf	2*3*4 or 4*4*4	φ50*100
21	CBB65 45+1.5uf	2*3*4 or 4*4*4	φ50*100
22	CBB65 45+3uf	2*3*4 or 4*4*4	φ50*100
23	CBB65 45+5uf	2*3*4 or 4*4*4	φ50*125
24	CBB65 45+7.5uf	2*3*4 or 4*4*4	φ50*125
25	CBB65 50+1.5uf	2*3*4 or 4*4*4	φ50*125
26	CBB65 50+3uf	2*3*4 or 4*4*4	φ50*125
27	CBB65 50+5uf	2*3*4 or 4*4*4	φ50*125
28 29	CBB65 50+7.5uf	2*3*4 or 4*4*4	φ50*125
30	CBB65 60+1.5uf	2*3*4 or 4*4*4	φ50*125
31	CBB65 60+3uf	2*3*4 or 4*4*4	φ50*125
32	CBB65 60+5uf	2*3*4 or 4*4*4	φ50*125
33	CBB65 60+7.5uf	2*3*4 or 4*4*4	φ55*125
34	CBB65 70+1.5uf	2*3*4 or 4*4*4	φ55*125
35	CBB65 70+3uf	2*3*4 or 4*4*4	φ55*125
36	CBB65 70+5uf	2*3*4 or 4*4*4	Φ60*125
37	CBB65 70+7.5uf	2*3*4 or 4*4*4	Φ60*125
38	CBB65 80+1.5uf	2*3*4 or 4*4*4	Φ60*125
39	CBB65 80+3uf	2*3*4 or 4*4*4	Φ60*125
40	CBB65 80+5uf	2*3*4 or 4*4*4	Φ60*125
41	CBB65 80+7.5uf	2*3*4 or 4*4*4	Φ60*125

Note: Other specifications and size,terminal outside table are negotiable.
