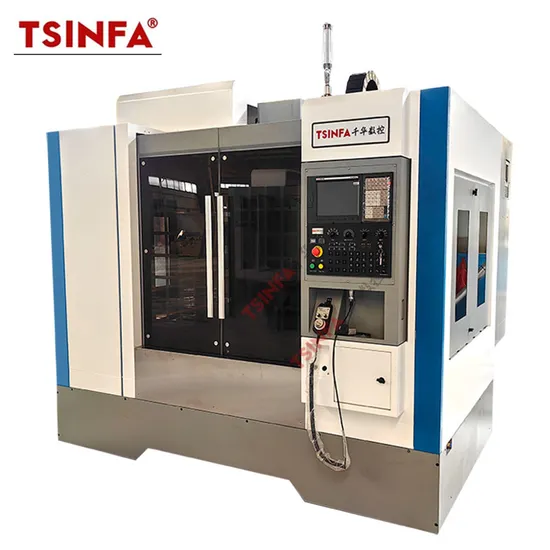

CNC Milling Machine 3 Axis Automatic Metal Vertical Machining Center Vmc850

Product Description

Product Description
The main performance characteristics:
High quality resin sand
Taiwan spindle
Automatic lubrication system
System:GSK, SIEMENS, FANUC
24T Tool magazine
3 axis linear rail
Product Parameters

Specification	Unit	VMC850
Table size	mm	1000*500
T-solt(NO.×width)	mm	5*18
Max. table load	kg	500
Guide rail type		X/Y/Z linear Guideway
X/Y/Z axis travel	mm	800*500*500
Distance from spindle nose to worktable	mm	120-620
Distance from spindle center to column	mm	570
Spindle taper		BT40
Spindle speed	rpm	8000
Spindle motor	kw	7.5
X/Y/Z axis motor	nm	15/15/22
X/Y/Z axis rapid feed speed	m/min	48/48/48
Magazine type		Disc
Magazine Hole Taper		BT40-24
Positioning accuracy	mm	±0.005
Repositioning accuracy	mm	±0.004
Overall size(L×W×H)	mm	2600x2300x2400
Machine weight	T	4.8

Detailed Photos

Certifications

Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers. Packaging & Shipping

FAQ

Q1:How can l choose the most suitable machines ? Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you . Q2: What's your main products of your company? Products cover metal cutting machine and metal forming machine two categories. Metal cuttinging machine tools are: CNC machining center, CNC lathe, manual lathe, manual milling, sawing machine, etc. Metal forming machine: hydraulic press machine. Q3: Where is our factory located? How can l visit there? Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.You are warmly welcomed to visit us. Q4. How do you transport it? Provide Transportation Solution DDP/CIF/FOB/FCA Q5: What's the Payment Terms ? T/T ,30% initial payment when order,70% balance payment before shipment . 06: What's the MoQ? A: 1 set .(Only some low cost machines will be more than 1 set ) We want to know: 1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model! 2.lf need ClF Price, please kindly tell us the port of destination.

---
