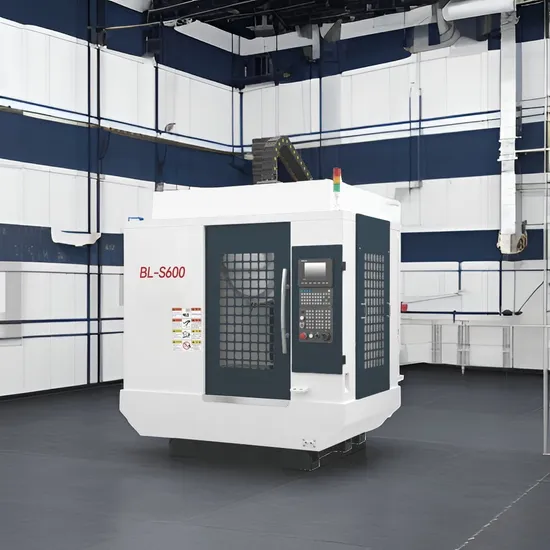

Economical CNC Drilling and Tapping Center (BL-S600/800)

US$29,000.00-32,000.00 1 set (MOQ)

Basic Info.

Model NO.
BL-S600/800
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Mid-Range CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Max. Drilling Dia.(U Driller)
18/20mm
Max. Tapping Dia.(Standard/Optional)
M16/M18mm
Table Size
700*420/900*500mm
Spindle Speed
12000rpm
Tool Magazine Type
21t Slant Disc Type
Spindle Motor Power
5.5/7.5kw
X/Y/Z Axes Positioning Accuracy
±0.003/300mm
X/Y/Z Axes Repeatable Positioning Accura
0.003mm
Transport Package
Wooden Case
Specification
ce
Trademark
BLIN
Origin
China
HS Code
8457101000
Production Capacity
480 Units/Year

Packaging & Delivery

Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg

Product Description


- Adopt HT300 class cast iron
- 3 axes adopt wide linear guideway, high rigidity
- 3 axes adopt big pre-stretched ball screw
- Adopt Slant Disc type 21T/16T tool magazine,fast tool changing
Item Specification Unit BL-S600 BL-S800
Capacity Max. drilling dia.(U driller) mm Φ18 Φ20
Max. tapping dia. mm M16 M18
Worktable Table size(L×W) mm 700×420 900×500
T slot(NO./width/distance) mm 3/14/125 5/18/90
Table max. loading kg 300 500
Spindle Spindle motor power kw 5.5/7.5
Spindle type / BT30
Spindle max. speed rpm Direct-drive 12000(opt.:20000)
Distance from spindle nose to table face mm 135~485 120~570
Feeding axes X/Y/Z axes travel mm 600/400/350 800/520/450
Cutting feed speed mm/min 5~15000
X/Y/Z axes rapid moving speed m/min 48/48/48 48/48/36
Positioning precision mm ±0.003/300
Repeatable positioning precision mm 0.003
Tool magazine Tool magazine type / Slant disc type
Tools qty / 21 16
Tool changing time(tool to tool) s 1.6 1.8
Max. tool dia.(full/(no adjacent tool) mm Φ50/Φ120 Φ60/Φ120
Others Overall dimension(L×W×H) mm 1900×2100×2200 2400×1700×2100
Weight kg 3000 4500

Main parts list:
Item Brand
Ball screw TAIWAN-HIWIN/PMI
Linear guideway TAIWAN-HIWIN/PMI
Ball screw bearing SWEDEN SKF/GERMAN FAG
Spindle TAIWAN
Tool magazine TAIWAN-SANJET
Main electric parts FRANCE-SCHNEIDER
Pneumatic parts TAIWAN-AIRTAC
Lubrication pump JAPAN-HERG

Standard configuration:
-SYNTEC 22MA CNC controller

Optional configuration:
-FANUC 0I MF CNC controller
-4th axes
