Product Description
Product Description

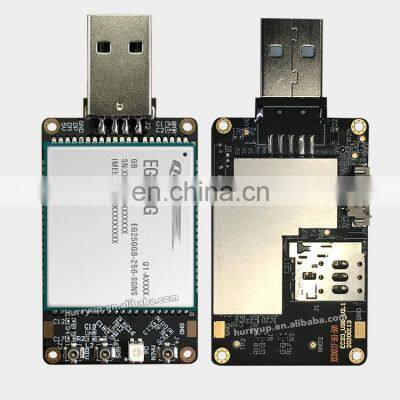

DescriptionLTE USB DongleI.4G communication solutionA rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance, and digital signage.II.Key Benefits1. Support USB / UART communication interface2. Max 150Mbps downlink and Max 50Mbps uplink3. USB serial drivers for Windows 7/8/8.1/10, Linux, Android4. Industrial grade, stable operation in harsh environment test from -20 ℃ to 60 ℃5. MIMO technology meets demands for data rate and link reliability in modem wireless communication systemsDimensions66.2×30×7(mm)ModuleQuectel EC25 LTE Cat 4 modulePower Consumption2W (Max)Antenna1×4G Main antenna,1×4G auxiliary antenna,1×GPS antenna*Antenna ConnectorIPEX 1.0Sim card slotNano SIM card slotOpreating Voltage5VTemperature RangeOperating: -20°C to 60°C Storage: -40°C to 85°CHumidityOperating: 5% to 95% (non-condensing)Storage: Max. 90% (non-condensing)EG25-G Variant for Global UsageLTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28LTE-TDD: B38/B39/B40/B41WCDMA: B1/B2/B4/B5/B6/B8/B19GSM: B2/B3/B5/B8Data TransmissionLTELTE FDD: Max 150Mbps (DL)/ Max 50Mbps (UL)LTE TDD: Max 130Mbps (DL)/ Max 30Mbps (UL)UMTSDC-HSDPA: Max 42Mbps (DL) HSUPA: Max 5.76Mbps (UL)WCDMA: Max 384Kbps (DL)/ Max 384Kbps (UL)TD-SCDMAMax 4.2Mbps (DL)/ Max 2.2EVDO: Max 3.1Mbps (DL)/ MMbps (UL)CDMA2000ax 1.8Mbps (UL)1X Advanced: Max 307.2Kbps (DL/UL)GSMEDGE: Max 296Kbps (DL)/ Max 236.8Kbps (UL)GPRS: Max 107Kbps (DL)/ Max 85.6Kbps (UL)Output PowerClass 3 (23dBm±2dB) for LTE FDDClass 3 (23dBm±2dB) for LTE TDDClass 2 (24dBm+1/-3dB) for TD-SCDMAClass 3 (24dBm+1/-3dB) for WCDMAClass 3 (24dBm+2/-1dB) for CDMA BC0Class E2 (27dBm±3dB) for EDGE 900MHzClass E2 (26dBm±3dB) for EDGE 1800MHzClass 4 (33dBm±2dB) for EGSM900Class 1 (30dBm±2dB) for DCS1800Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
>>
