Full Bridge Sc134 Flat Thin Micro Weight Sensor Small Load Cell 10kg-300kg

Product Description

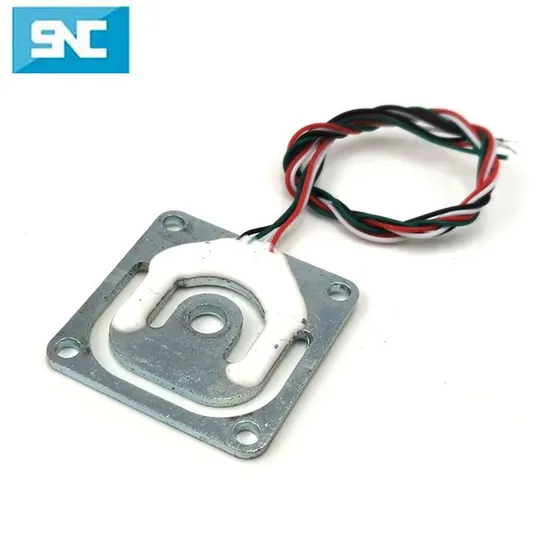

Full bridge 4 wires SC134 flat thin miniature micro force weight sensor small load cell 10kg 20kg 30kg 50kg 75kg 100kg 150kg
Product Description
Features:

Model: SC134
Capacity: 10kg, 30kg, 50kg, 75kg, 100kg, 150kg
Type: Full / half bridge load cell
Material: Alloy steel with IP66 waterproof
Application: Kitchen scale, body scale and other weighing devices.

Parameters:

Rated capacity	10kg, 30kg, 50kg, 75kg, 100kg, 150kg
Zero balance	±0.5mV/V
Output sensitivity	0.8±0.2mV/V-Half Bridge, 1.6±0.2mV/V-Full Bridge
linearity	0.05%F.S
Repeatability	0.05%F.S
Hysteresis error	0.05%F.S
Creep	0.05%F.S/1min
Comprehensive error	0.05%F.S
Temp. effect on span	0.1%F.S/10
Temp. effect on zero	0.2%F.S/10
Input resistance	1000±10Ω
Output resistance	1000±10Ω
Insulation resistance	≥2000MΩ (10VDC)
Excitation voltage	3~10VDC
Operating temp.range	-10~+60
Defend grade	IP66
Material	alloy steel
Cable (Full bridge)	Red, Black, White (Green)
Safe Overload F.S	150%F.S
Ultimate overload	150±10kg
Wiring	Red(input+) Black(input-) White(output-) Green(output+)
Item	Full bridge / half bridge load cell

Related Products
All products

Sensorcon Product Lists
Strain Gauge	Load Cell	Torque Sensor	Display
Linear Strain gauge-AA	Wireless sensor	Slip ring rotary torque sensor	Platform scale display
Half bridge strain gauge-BB,HA,GB,FB	Micro load cell	Contactless rotary torque sensor	Truck scale display
Shear/torque strain gauge-AB,HA	Single point load cell	Static torque sensor	Controller
Full bridge strain gauge-EB, FG,FD	Button load cell	Meters	Junction box
Tee Rosettes strain gauge-CA,BA	Shear beam load cell	Coupling	Big screen display
Round type strain gauge	S type load cell		Amplifier
Semi-conductor strain gauge	Column load cell
	Bridge type load cell

Company Information Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.
Packaging & Shipping
FAQ 1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments
before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
