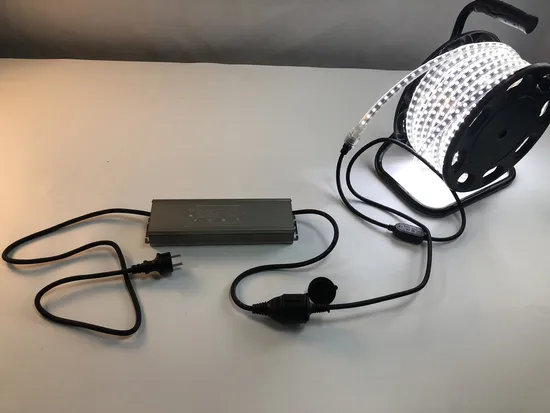

36V 6A LED Power Supply Constant Current LED Driver

Product Description

36V 6A led power supply constant current led driver
Advantage: *Global certificates: CE,GS,CB,UL,CUL,FCC,PSE,SAA,C-TICK,RCM,KC,CCC,ROSH,REACH,ERP,MEPS,NRcan.
*All power supply,battery chargers and power adapters are 100% burn-in tested and inspected with automatic test equipmrnt(ATE).
*100% inspection: no load voltage, load voltage,short circuit, OCP,OVP, Ripple Voltage, Primary, HIPOT test and general appearance.
*Safety standard: UL60950,EN55022,EN55015,EN61547,EN61000,EN60335,EN61558,EN61347-1,EN61347-2 -13,EN62233,EN60529,GB4943.1,GB9254,GB17625,J60950,J55022,J3000,J61347-1,J61347-2-13,J55015,J55014,J61558,K00022,K00024.
*We back our items with three-year guarantees.
*Key components made by ourselves, such as Transformer, case, and DC cord.
*Lead by general engineer of 25 years experience.
*Both OEM and ODM are vailable
Specification :

Item	Parameter
Part name:	36V 6A led power supply constant current led driver
Model No.	FY3606000
AC Input:	100-240V,50/60HZ
Max charging voltage:	36V
Max charging current:	6A
Inrush current:	Limited 15A when cold starting
Protection:	short circuit, over current and over voltage protection.
Efficiency:	90%
Power factor:	0.89
HIPOT testing:	3000-3700V
Drop testing:	meet UL standard.
Temperature:	Case 65 ºC Max.
Operating temperature	-29ºC~ +45.5ºC
Storage temperature:	-40ºC~ +75ºC
MTBF:	30000 hours full rated load at 25ºC
Energy Efficiency:	Level VI( DOE or COC)
AQL:	MIL-STD-105E II CRI 0; MAJ 0.25; NIN 1.0

More Pictures:
Producttion dept consist of coiling team, DIP team, injection, rework, assembling, packing, wire processing etc.
Certifications File No: UL file No.:Power Supply: E304160 ; Waterproof LED driver -E343215 Check here:fuyuang.en.made-in-china.com TUV/GS file No.:S1 50224721& S150205925 & S150203696 & S1 50272098& S1 50278124& S1 50270517 Check here:fuyuang.en.made-in-china.com SAA file No.:ESO110651(replace of Q061232)& SAA131909EA & SAA130561 & EAE1308371 Check here https://equipment.erac.gov.au/Public/ C-tick file No.:N17653 & N136, Check here: http://www.cotek.sg/approval.html PSE file No.:JD50195547 & JD50248227 & JD 50287481 Check here: http://fuyuang.en.made-in-china.com EK file No.:HU10419-7001A Check here: www.ktc.re.kr, KC file No.:HU10419-9002A Check here: www.ktc.re.kr CE file No.:E0604412-01&S1403017 Check here:fuyuang.en.made-in-china.com RoHS file No.:CANEC1313005401 Check here: http://fuyuang.en.made-in-china.com CCC file No.:2014010907681379 Check here: http://fuyuang.en.made-in-china.com CB Certification No.:JPTUV-042130&JPTUV-037849&DE 2-014922&DE 2-017489 Check here:fuyuang.en.made-in-china.com Contact us:
