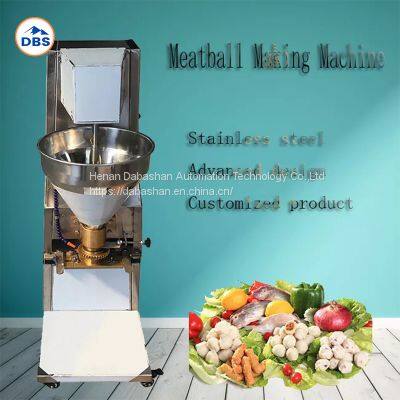

Meatball Machine
1.Equipment introduction
Meatball machine adopts continuous output meatballs system,high production efficiency,and equipped with different caliber knife and molding device,can be replaced at will according to the user's requirements.
This machine is small, light weight and low noise.It has beautiful and generous, durable, convenient operation and maintenance, efficient power saving and other characteristics.
Produced meat (fish) balls are good quality, smooth appearance, good roundness and the same size.
Meatball machine mainly used for dry chicken meatball,fish meatball,shrimp meatball,pork meatball, meatball,core meatball, beef meatball, mutton meatball, vegetable ball, large meatball, four-joy meatball, pet use meatball etc meatball products’ process.
Meatball production line’s mainly equipment has meat planer,meat grinder,chopping machine,filling machine,meatball machine,forming sink,frying equipment etc.
2.Equipment model and technical parameter
Model
| DBS-1
| DBS-2
| DBS-3
|
Type
| Normal
| Large meatball
| Core meatball
|
Production efficiency(pcs/min)
| 260-400
| 150-200
| 100-150
|
Voltage(V)
| 380
| 380
| 380
|
Power(kw)
| 1.5
| 1.5
| 1.1
|
Capacity(kg/h)
| 150-180
| 125-160
| 100-150
|
Meatball standard(mm)
| Ф17-Ф22
| Ф30-Ф50
| Ф22-Ф30
|
Dimension(mm)
| 765*390*1390
| 765*390*1390
| 800*650*1720
|
>>
