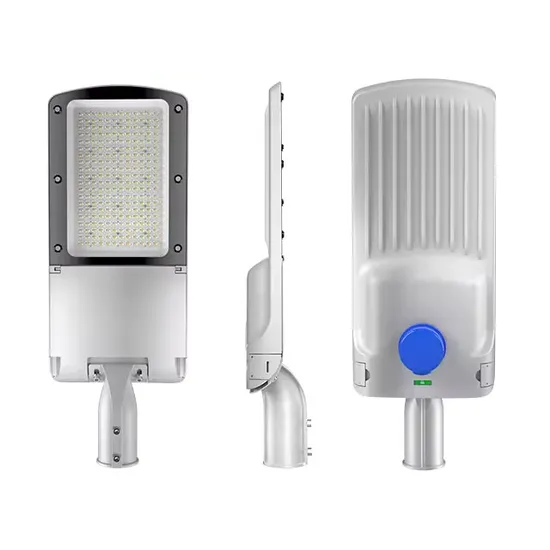

200W, 300W Tool Free Maintenance LED Street Light with Rotatable Arm, Glass Cover

Product Description

K Series Tool Free Maintenance LED Street Light Parameter: Model No.: Dimension LEDs Qty. Watts. Luminous Net Weight Packing Size

LDK-60W	588*210*110(mm)	72pcs SMD 3030	60W	7800lm	4.3 kg	610*290*180(mm)
LDK-100W	600*258*110(mm)	144pcs SMD 3030	100W	14000lm	5.6 kg	730*330*180(mm)
LDK-150W	700*258*110(mm)	240pcs SMD 3030	150W	21500lm	7.2 kg	780*390*190(mm)
LDK-200W	705*308*110(mm)	320pcs SMD 3030	200W	26800lm	9.8 kg	790*440*190(mm)
LDK-300W	788*335*115(mm)	384pcs SMD 3030	300W	39000lm	12kg

Stainless Steel Screw, and Corrosion Resistance Surface, Thickened Lamp Arm
Corrosion Resistance Surface. Optional Add : NEMA socketNEMA socket on top of housing upon request. Light induction-Extra photocell sensor available Leaf Veins Cooling Design, Good for Heat Dissipation. Big Independent Driver Box Enclosed Power Drive Boxes, more protection, Isolated drive Integrated Design for Heat dissipation Integral Connector Firmly Pole Arm, Economic and compact design type.Rugged Die-Cast Aluminium housin High Luminous Efficiency LED Chip>240lm/W, Anti-UV PC Lens Dots Optical PC Lens High Light Transmittance>90
K Series Tool Free Maintenance LED Street Light Explode Diagram:
K Series Tool Free Maintenance LED Street Light Thermal Management Test:
K Series Tool Free Maintenance LED Street Light Luminous Intensity Distribution Curve.
K Series Tool Free Maintenance LED Street Light Dimension Sketch:
K Series Tool Free Maintenance LED Street Light Packing:

---
