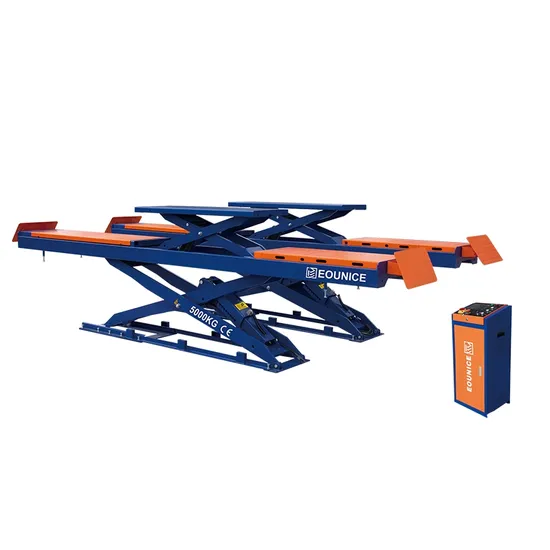

Flush Mount in Ground Double Alignment Scissor Lift for Garage Equipment

Product Description

TECHNICAL DATA:

Model	Lifting Capacity	Lifting Time	Lifting Height	Minimum Height	platform Length	Runway Width	Gross Weight	Motor Power
ON-7805-50H	5,000kgs (11,000LBS)	≤60S	2160mm	330mm	4500mm	605mm	2,352kgs	2.2KW (3HP)

PRODUCT INTRODUCTION:
Double scissors Alignment lift with control cabinet,5000kgs lifting capacity for main scissor lift and 5000kgs lifting capacity for secondary scissor lift. Synchronization cylinders system equipped with hose burst valves,mechanical lock and pneumatic unlocking device. 24V control system with height limit switch.
MAIN FEATURES:
Main lifting capacity: 5000kg
Second lifting capacity:5000kg
Main lifting height: 2160mm
Second Lifting height:450mm
Main platform length: 4500mm
Second platform length:1600mm~1900mm
Main platform width: 605mm
Second platform width: 550mm
Main lifting time: 60s
Second lifting time:30s
Platform min height:330mm
OUR FACTORY:
Warranty term: Our products are warranted for one years on equipment structure, to be free of defects in material and workmanship.

Motors, gear box, power units, hydraulic cylinders, and all other assembly components such asturnplates, slip plates,

Cables, chains, valves, switches etc, are warranted for one year against defects in material or workmanship under normal use.
Our Services Our Company will be Provide to you some Service.

1. OEM ODM service.
2. Customized service.
3. One Year Quality warrant service, during the period spare part supplied free
if you pay for shipping.
4. Professional team supply service for life long time.
FAQ The Some buyer maybe ask ?

A:You Are Trade Company or Factory?
A: We are manufacturer and we have our own trade company.So pls don`t worry.

B: How long the production can be delivered?
A: Commonly the lead time will be within 15 days after receiving 30% deposit or L/C,
subject to prior sales.This ways based on 1 20FT Containers or 40HQ Container.

C: What is the regular color? Can I order special color which I like?
A: The regular color is Blue, Red, Yellow.
Yes, we can also produce machines with special color according to client's request.

D: Can I order in any special size?
A: Yes,you can.
The size is customized, but should be suitable for the inner size of containers.pls understand.

---
