| US$3,000.00-50,000.00 | 1 Set (MOQ) |

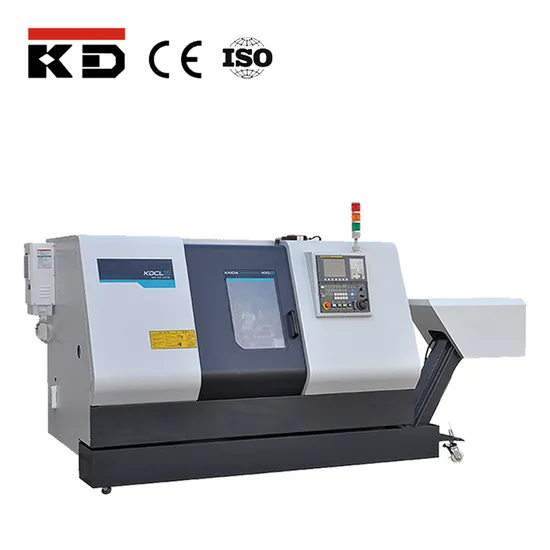

| MODELS | KDCL-15 |
| CAPACITY | |
| Max.swing over bed | Ф360mm |
| Max.cutting diameter for disc parts | Ф250mm |
| Max.cutting diameter for axle parts | Ф150mm |
| Max.length of workpiece | 300mm |
| TRAVEL | |
| X travel | 150mm |
| Z travel | 320mm |
| Guide ways X&Z | Precision linear ball rail |
| FEED | |
| Rapid feed for axis X | 12m/min |
| Rapid feed for axis Z | 20m/min |
| SPINDLE | |
| Max.speed of spindle | 4000rpm/ 6000rpm(sleeve spindle) |
| Spindle nose | MT.5 / A2-5 (sleeve spindle) |
| Diameter of spindle thru hole | Ф38mm/ Ф56mm (sleeve spindle) |
| Hydraulic chuck | 6″ |
| Type of spindle motor | Servo motor |
| Spindle motor power | 7.5/11kw |
| TOOL POST | |
| Tool number | 8 ways |
| Outside diameter of cutting tool shank | 25×25mm |
| Inner dia.of cutting tool shank | Ф32mm |
| TAILSTOCK | |
| Tailstock sleeve dia. | Ф80mm |
| Tailstock sleeve travel | 90mm |
| Taper hole of tailstock quill | M.T.No.4 |
| OTHERS | |
| Repeatability | ≤0.006mm |
| Min.input | 0.001mm |
| Bed structure | 45° slant bed |
| Overall dimensions(L×W×H) | 2700×1460×1680mm |
| Net weight | 3000kg |
