360 Around View Backup Camera System for Truck, Bus and Caravan

Product Description

Avm Camera Monitor System with Around View Monitor DVR for Truck Agricultural Engineering Vehicles Forklift Harvester Safety Surveillance Features
Engineering machinery equipment vehicles, agricultural machinery equipment vehicles, municipal environmental sanitation sweepers, etc. have the characteristics of wide-body width and long shaft length of the vehicle body, and a high driving position. There is a large driving visual safety blind zone around the vehicle. A single camera and multi-picture rear-view system cannot meet the requirements of multiple monitoring areas. The 360 panoramic pedestrian and vehicle detection and early warning system is composed of four wide-angle starlight full-color cameras installed in the four directions of the vehicle, which synthesizes the panoramic overhead view around the vehicle through 360° AI visual algorithm. When there are pedestrians and other vehicles around the vehicle, the system's onboard display screen picture and sound and light alarm are linked for early warning, providing drivers with intuitive safety prompts, and making the vehicle's driving safer and more efficient.

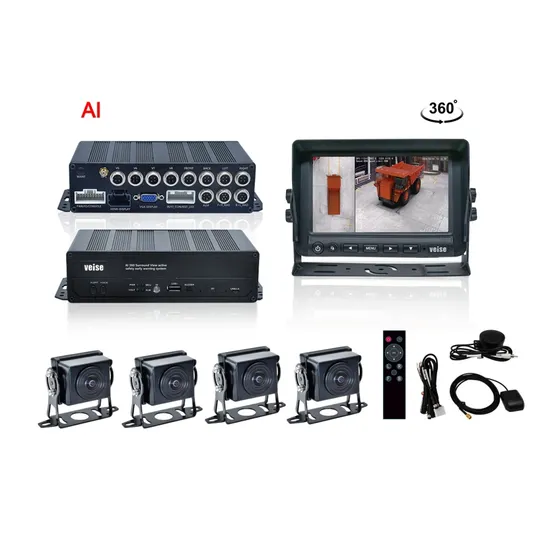

Around View Monitor (AVM) System Mainframe Shoot images by multiple (generally four) super-wide cameras. Carry out distortion correction and stitching on the taken images by special algorithms, forming a system that shows the panoramic images around the object. Intellectual (automatic, manual) fast stitching. The steering signal automatically switches between 3D/2D images of the vehicle. Intellectual voice control 12 kinds of image monitor modes. Detect and warn the safety distance of the pedestrians and cars around the vehicle, achieving 360° non-blind collision protection.
When the speed of the car is lower than 25 kilometers per hour, the system automatically switches the warning picture, turns to the lane changing assist warning picture, and links to outdoor sound and light alarm.
Support the input of 4 AHD panoramic cameras and expand 2 monitoring cameras additionally. Support the input of 16 radar probes. Support the alarm function of setting the defense when the engine is turned off. Support the CAN bus communication protocol.
Support 4-channel AHD panoramic camera input, real-time recording, cyclic recording, and video playback (SD card + MSATA storage way).
7-inch HD IPS Monitor
automative-grade DSP, 1024RGB(H) X 600(V)dot resolution
DC8~32V wide range working voltage, independent power output, load dump pulse voltage protection, external reverse polarity protection for power supply. LED constant current and constant voltage protection avoids improper use and guarantees for shelf life.
Around View Camera
210° wide angle ,automative-grade DSP, 2 million HD pixel, IP69K waterproof rate, starlight full color, cold-resistant signal output line
Product Parameter

Monitor	model	MHD-779
	screen	7-inch IPS screen
	resolution	1024×RGB×600
	brightness	600cd/m2
	viewing angle	85/85/85/85(left/right/up/down)
	signal input	support two-way AHD1080/720/CVBS video signal input
	power input	DC11-32V/5W
	working temperature	-20ºC~+70ºC
	storage temperature	-30ºC~+80ºC
	vibration/shock	GBT 2423.56-2018 standard (random 5G vibration)
	bracket	U-shaped tinplate bracket
	size	200*130*82mm(without support)
AVM+DVR	model	DF-3DH7AI-AHD
	power consumption	10-30W
	power supply protection	anti-surge and anti-reverse function, low-power protection, shor-circuit and overload protection
	video inputoptional	AHD/HDMI/VGA
	video input	four 1080P_AHD panoramic cameras input
	warning function	BSD
	video recording format	H.265
	recording resolution	1920*1080
	working temperature	-20ºC~+70ºC
	image storage	SD8-512GB
	vibration/shock	GBT 2423.56-2018 standard (random 5G vibration)
	size (millimeter)	100*130*29(length*width*height)
	weight	400g
Panoramic camera	model	CHD-805Z
	resolution	1080P
	working temperature	-20ºC~+60ºC
	waterproof rate	IP68
	low illumination	0.01 Lux
	vibration/shock	GBT 2423.56-2018 standard (random 5G vibration)
	horizontal angle	210°
	vertical angle	126°
	voltage input	DC8-16V

---
