Product Description
Product Description

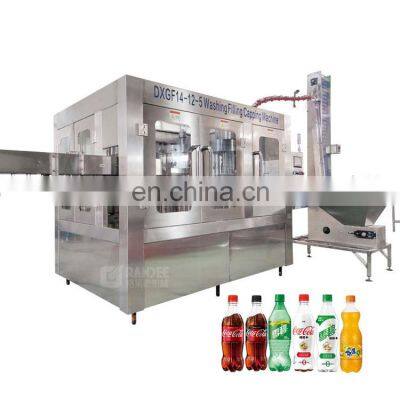

Automatic soft drink bottling equipment carbonator mixer rotary pressure filler machine production lineProduct DescriptionFeatures:1.Air conveyor is directly linked with feed-in starwheels, making it easier to change bottles without screws and conveyor chains.2.Bottles are transferred in the manner of clamping neck. Bottles can be changed through some replacement of steel clamps, which instead of adjusting the height of machine.3.Rinser-clamp which special design is strong and endurable, no contact with bottle-mouth, to prevent pollution.4.Highly effective spraying nozzles equipped on the rinser-clamp can rinse every side of inner bottle and save water.5.Accessories which contact with material are all made of stainless steel, no dead angles and easy to clean up.6.Replacement between CO2 and O2 ensure almost no O2 in bottle, long filling pipe reduce O2 content to null.7.Valve on-off system is driven by hydraulic cylinder, which starts on bottle signals.8.Bottom splint which fixed in the feed-out starwheel goes down in the manner of screw. Bottles can be changed without adjustment of height of conveyor chain.9.Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage.10.Highly effective cap sorting and feed in system is protective for feed in and cap absence.11.Equipped with overload system to safeguard machine and operators.12.pneumatic system are FESTO. Automatic PET bottle carbonated drink washing filling sealing equipment Automatic carbonated drink filling machine production line packaging specificationsMaterial: SS304/316Bottle materialShapeFilling volumeFilling level(mm)Neck typePET/Glass bottleSquare/round/flat bottle100-2250mlAccording request±1mmAs requiredAdjustable specificationsBottle size: bottle diameter≤110mm, bottle height≤340mmIf using square bottles, then bottle separating system will be addedFilling temperature2℃-40℃ level control: float ball and pneumatic butterfly valve.Bottle labeling typePacking system Min, Spec.Palletizing systemManual/ automaticHot melt roll-fedPVC shrink labelFull label/half labelFilm shrink packingRobert packingCarton packing2*3 2*4 3*43*5 4*4 4*5 4*6 6-30bags/minLow positionGantry palletizerRobot palletizerUser Ambient ConditionsTemperature: 2-40℃, Humidity: no dewBottle feed-inConveyor with screw for glass bottleAdopt air-conveyor for PET bottle Grandee machinery can do more for you Detailed ImagesWashing Part:The bottle enters into the rinsing part of three-in-one machine through air conveyor.The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position againFilling part:Contact-free filling, with all parts in contact with a beverage made from stainless steel AISI 304 / 316L.Automatic dummy bottles available, with insertion and removal available for automated CIP.Optional reduced filler enclosure strengthens food safety and reduces the usage of chemical agents and water during external cleaning.Capping Part: Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam.RO SystemBesides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department.This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank.This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etcBlowing Machine with different options: 1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities. 2.Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle. Full automatic sleeve labeling machineCapacity: 100-350bottles/min can be choosedLabel material: PVC PET OPS,etcBottle material: PET PE PP GlassBottle Diameter: 28 ~ 120mmBottle Height: 15~320mmBottle shape: round, square, ellipse, rectangularLabel length: 30~250mm(max)Label thickness: 0.03~0.13mm Automatic L PE Film Shrink Packing Machine shrink film material: PE Maximum packing size: 420*300*350mmMax. sealing size: 650mmLevel of conveyor: 950±30mmMaximum shrink temperature: 160-260℃Capacity: 8-12packages/min Power: 26KW/16KWWeight: 1500KG Company information Workshop detail Our team Our exhibition Project cases FAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare parts?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
