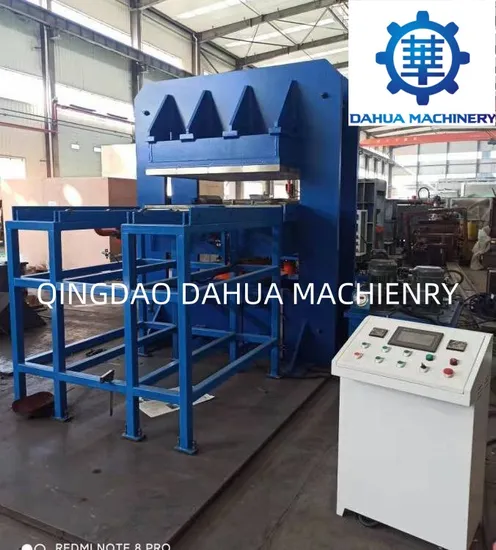

Frame Rubber Vulcanizing Press with Automatic Push-Pull Device

Product Description

frame Rubber Vulcanizing Press with Automatic Push-Pull Device
This series plate vulcanizing machine special-purpose takes shape the equipment for the rubber profession.Heats up the way to uses the electric heating(steam or oil heats up),the power uses the height combination to pump for the oil way, reduces the equipment the power loss.The electrical control uses the advanced PLC control technology,may realize automatic controls when, automatically operates the mold,is automatic warm controls and so on the craft.And may realize automatically deflates. Thus guarantee product quality and high efficiency.May have custom-made each kind of four columns,the frame type, the work table emigration-ton type,the work table emigration type in addition according to the customer product technological requirement and so on the many kinds of plates vulcanizing machine.

Type	XLB-DQ1200× 1200× 2	XLB-DQ1300× 2000× 1	XLB-Q1200× 2500× 1	XLB-Q1500× 2000× 1	XLB-Q2000× 3000× 1	XLB-Q1400× 5700× 1
Total Pressure(MN)	315t	560t	750t	1000t	1800t	2800t
Plate Size(mm)	1200× 1200	1300× 2000	1200× 2500	1500× 2500	2000× 3000	1400× 5700
Daylight (mm)	200	400	400	400	400	400
Layer NO.	2	1	1	1	1	1
Piston Stroke(mm)	400	400	400	400	400	400
Plate Unit Area Pressure	22	21.5	25	33.5	30	35
Main Motor Power(kw)	3	8	9.5	11	26	43.5
Overall Dimension(L× W× H) (mm)	1685× 1320× 2450	2000× 1860× 2500	2560× 1700× 2780	2810× 1550× 3325	2900× 3200× 2860	2400× 5800× 3600
Weight(kg)	9500	17000	20000	24000	66000	110000

It is including deckle board,pedestal,hydraulic cylinder,plunger,moving platforms,top bridge,top and bottom hot plates and so on. Detailed Photos
Applied products:
Packaging & Shipping
About Dahua : Qingdao Dahua Machinery Co.,Ltd. which was established in 2000 is affiliated to Shandong Rubber Machinery Research Institute.We specialize in scientific research,production and sales of Rubber Machinery.As keeping extensive close cooperation with Qingdao University of science and technology,Shandong University,China University of petroleum,Chinese Academy of Sciences we have made a great contribution to the development of China Rubber Machinery.The company has experienced technical team,earnestly the grass-roots staff.We have advanced CNC machines and a variety of large and small mechanical processing equipment,heat treatment equipment and sophisticated detection equipment and introduced advanced UG 3D mechanical design software and performance optimization software in 2006. Our design team can design and manufacture non-standard rubber machinery according to customer requirements."Quality first, technology innovation" is the company's business principle,our products were rated as "excellent provincial famous brand" ,"free products" and exported to many countries and regions such as United States,Germany,France,Canada,Australia,South America and so on.With excellent quality and good customer service, the products have been well received among domestic and foreign customers!We sincerely welcome customers all over the world to visit our company or call us to have a business negotiation, hope to make a good faith and win-win cooperation with you and common development hand in hand.
HOT SALE
FAQ: Q: Are you manufacturer or trade company?
A: We are really 100% manufacturer.
Q: How many year's experience does your company have?
A: More than 20 years of concentration, we mastered several key technologies.
Q: What product can you supply?
A: Rubber press machine, Vacuum molding press machine, Injection Molding machine, Rubber mixer machine, calender machine, extruder machine and rubber product equipment solvtions.
Q: What are the operating modes of the machine?
A: With manual and semi-automatic operation mode.
Q: What control system does the machine use?
A: We use PLC as the core of control system, we ususlly usee Omron PLC.
Q: How long is the warranty of your machinery?
A: Our warranty is one year.
Q: How long is the delivery time?
A: Usually we need 40-60 days , if there is inventory , we can finish the modification within one month, but it may take longer if there are special requiements.

---
