High Speed Energy Saving Pet Blow Machine

Product Description

PET water bottle blowing machine
I. Brief Introduction of PET bottle blowing machine :
FG4 series fill the gaps in the domestic high-speed linear blowing machine. Currently, domestic single-mold speed of linear blowing machine still stay around 1000BPH, while international max single mold speed has reached 1800BPH.

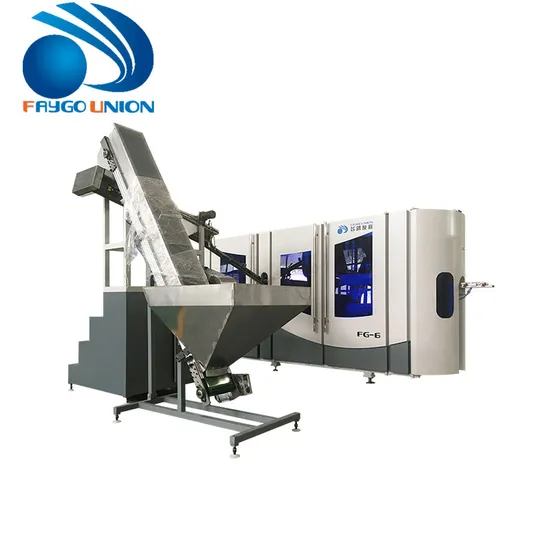

FG series blowing machine are equipped with automatic perform loading and unloading system. The machine is applicable for all shapes of drinking water bottles, carbonated bottles and hot filling bottles. FG4 is composed of three modules: prefrom elevator, perform unscrambler and host machine.
II. Technical Features of PET bottle blowing machine :
1). High Speed: 6500-8000BPH (4-cavity).
2). Less Space consumption: Machine is highly integrated, the construction is highly compact.
3). Less electricity consumption: performs intercept is shorten to the minimum, compared with common
4).blowing machine 30% electricity can be reduced.
5). High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
6). High Quality: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
7). No Contamination: Closed production zone, good self-lubrication system avoid contamination.
8). High Transparency: Easy maintenance, absolute safely, visual inspection, low noise.
III. Optional items of PET bottle blowing machine :
1. Exploded bottles ejection unit
During the blowing process, if the bottle burst, it can be automatically removed. This prevents the bad bottles into the filling machine.
2. HP air recovery system
After the bottle blowing accomplished, high-pressure air can be recycled can be used again for the pre-blowing and operational movement.
3. Oven and preform temperature detection system
Real-time detect the temperature of the oven and the temperature of the preform after heating before blowing. When the preform heating temperature does not reach the set blowing temperature blowing workstation will alarm, not blown.
Blowing Machine
Heating Oven:By rotary and soft preform loading system, the speed of preform feeding is ensured, menawhile, the preform neck is well protected.
Bottle Outlet:The machine adopts modularized design concept to make it convenient and cost-saving for the maintenance and changing changeovers.
Advantage of this high speed PET bottle blowing machine:
1.The unique cam linking system integrates the mold-opening,mold-locking and bottom mold-elevating in one movement,equipped with high speed servo driving system which greatly shortens the blowing circle and increase speed.
2.By rotary and soft preform loading system,the speed of preform feeding is ensured,meanwhile,the preform nect is well protected.
3.Heater distance in heating oven is minimized to 38.1mm,compare with the conventional heating oven,it saves more then 30% electricity consumption.
4.The machine adopt modularized design concept to make convenient and cost saving for the maintenance and changeovers.
Configuration and technical features

Main Parts
Pneumatic part& Cylinder	Valve	GERMAN
Electric part	PLC	JAPAN Mitsubishi
	Servo System	JAPAN Panasonic
	Frequency inverter	JAPAN Mitsubishi
	Operating system	JAPAN Mitsubishi
	Touch screen	JAPAN Mitsubishi
Blowing	Valve	JAPAN Parker
One-way Valve		GERMAN
Throttle Valve		GERMAN
Reducing Valve		GERMAN DURAY
Note	All of the electrical components adopts CE,UL,CCC approved international advanced high-tech product
Main Parameter
Model	FG-4
Capacity	Depend on bottle design	6800-7200PCS/H
Applicable Preform	Height	<330mm
	Neck	20mm-25mm
Applicable Bottle	Neck	20-25mm
	Volume	Max.2Liter
	Height	Max.328mm
	Diameter	Max.105mm
Electric consumption	Install power	51kw 380v 3Phase /220v 3Phase 50/60HZ
	Heating oven powder	46kw
	Heating Oven operating power	26kw
Air consumption	Pressure	4m3/min 4.0MPa
	Capacity	4m3/min 4.0MPa
Mold Chiller	Pressure	4-6Bar
	Temperature	6-13ºC
	Flow	45L/min
Oven Chiller	Pressure	4-6Bar
	Temperature	6-13ºC
	Flow	26L/min
Machine Dimension	L*W*H	3900*900*2500mm
	Weight	3500kg

---
