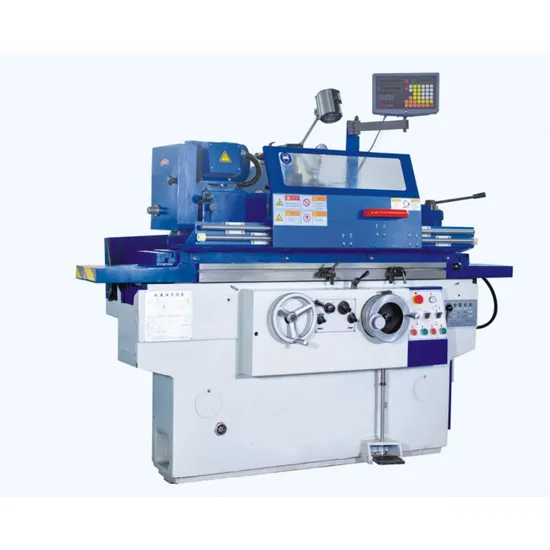

M1320h Cylindrical Grinding Machine M1420h/F Universal Cylindrical Grinding Machine

Product Description

Product Description
This machine tool is to absorb the advantages of the major
grinder and improve the cutting grinder.Heavy DutyGinder,with high cutting precision,high rigidity and highefficiency.Suitable for grinding cylindrical and conicalworkpiece
The workpiece of machine,cylindrical grinding wheel,theinner circle.of the grinding wheel,oil pump and coolingpump by an independent motordrive.
The longitudinal movement of the machine table by thehydraulic continuously variable transmission can also behandwheel drive,table lubrication Orifice Compensatedunloading form.
Grinding wheel frame transverse feeding fine tuning canbe made by the hydraulic feed and fast and automaticcycle,two feed hand wheel is also available to achieve thethickness
Machine moving parts with electrical,hydraulic and the
operation is safe and reliable.

Product Parameters

Description	unit	M1320H×500/800			M1420H/F×500/800
Grinding diameter (O.D.)with steady-rest min/max	mm	8/60			8/60
without steady-rest min/max	mm	8/200			8/200
(I.D.)with steady-rest min/max	mm				35/100
without steady-rest min/max	mm				25/100
Max,work weight	kg	50			50
Max.grinding length (O.D.)	mm	500/800			500/800
(I.D.)	mm				125
Center height	mm	135			135
Distance between centers	mm	500	800		500	800
Wheel dimensions(O.D.xWxl.D)	mm	Max. φ400×50xφ203, Min. φ280×50xφ203			Max,φ400×50xφ203, Min. φ280×50×φ203
Peripheral speed of grinding wheel	m/s	38			38
Wheel size forint.Grinding attachment	mm				Max. φ50×40xφ16, Min.45×35×10
Wheelhead spindle speed	r/min	1670			1670
Wheelhead rapid advance &wighdrawal	mm	25			25
Total motor power	kw	5.625			5.625
Overall dimnsions(L×W×H)	mm	2500×1600×1000		3000×1600×1000	2500×1600×1000		3000×1600×1000
Machine weight	kg	2500		3000	2500		3000

Detailed Photos
Our Advantages
Who We Are?
Founded on March 30, 2016, HANMING aims to provide customers with excellent products and services and industrial complete equipment solutions.
HANMING has always been standing in the perspective of every customer to deal with problems and ensure the timely and efficient handling of problems. Our salesmen are experienced senior marketing engineers who have been working in the industry field for many years, and our inspectors are technical engineers, which ensure our professionalism. Our products are mainly metal cutting machine, metal forming machine and other industrial equipment.
What Do We Can Do?
The core competitiveness of HANMING is having a strict quality management system and a team that can provide excellent services. We are familiar with the machine tool industry in China and know the positioning of products in various factories. We will select the most suitable machine tools for customers and ensure that after the completion of the machine tool, we will send quality control team to each factory for inspection to ensure that the machines delivered to customers are high-quality products that have been inspected. Our inspectors are also after-sales service personnel to ensure that every after-sales service problem can be timely communicated with each factory and give timely feedback.
Our Aim:
Relying on the keen market insight, HANMING makes forward-looking decisions on the changeable market and actively deals with and overcomes the difficulties encountered by the enterprise in various periods. Today, a steady and pragmatic team leads Hanming forward to open up a new world in the industrial export industry.

---
