Yongchuang Latching Poilt Operateel Diaphragn Structure Solenoid Valve

Product Description

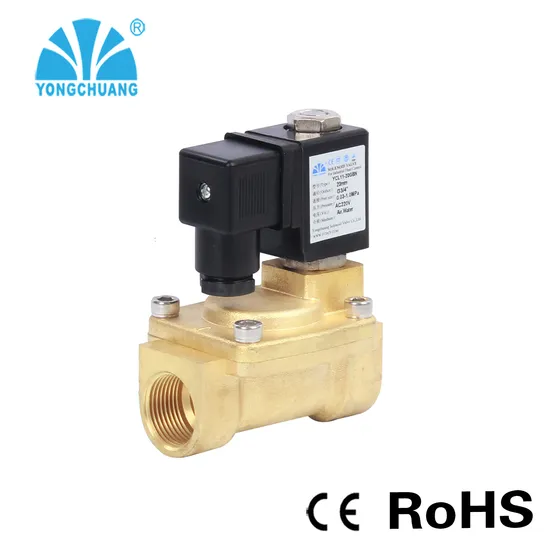

Latching solenoid valve YCL11
Characteristic : 1.With latching coil at low power consumption
2.Applied to washroom, public W.C. etc.
3.Lifespan can be at 1 million cycles.
Temperature: NBR Seal: 14F to 176F , -10 to 80
EPDM Seal: 14F to 250F , -10 to 120
VITON Seal : 14F to 300F, -10 to 150
Pressure: YCL11: 0.03MPa ~ 1.0MPa
Port Size: 3/8",1/2",3/4",1',11/4',11/2',2'
Port Thread: G ,BSPT ,NPT ,Flange
Orifice (mm): 15,20,25,32,40,50
Voltage: DC - 12V,24V,6v
Coils : L11B, 2W(DC), IP65 100%ED
Switching time: 0.025S~0.1S
Material: Body - Brass or stainless steel
Seal -NBR, EPDM or VITON
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304
Company & staff
Certificates
Production Delivery
Products will arrive to your office in 7~15 days after the payment is finished.
We will dispatch the valves by DHL, FedEx, TNT, UPS or by sea, it just depends on the weight of the products as well as your choice.
Our service
For OEM products
We will finish the production within 15 days after payment has been confirmed.cooperation with PARKER to improve our quality!
Warranty
Any question or problem will be respond within 24 hours.
One year guarantee:
One year since delivery.
Lifetime service:
Any problem happened to our product, we will do our best to help client to solve it, spare parts will be half price in lifetime.
Problem solve:
If you can't solve the problem in your local, please delivery the product to us, we will repare it, or we send our technicist to you.
Quality control:
All the products are calibrated with real working condition, and 100%tested before shipping as qualified product.
Integrity:
All the warrenty and guarantee from us will be put into come true.
