US$2,500.00-8,000.00
|
1 set
(MOQ)
|
Basic Info.
Application Area
Pharmaceutical
Main Material
Stainless Steel
Advantage
Easy Operation Better Price
Operating Type
Cycle Operating
Transport Package
Export Plywood Case
Specification
980*425*820mm
Production Capacity
50set/Month
Packaging & Delivery
Package Size
98.00cm * 43.00cm * 82.00cm
Package Gross Weight
220.000kg
Product Description

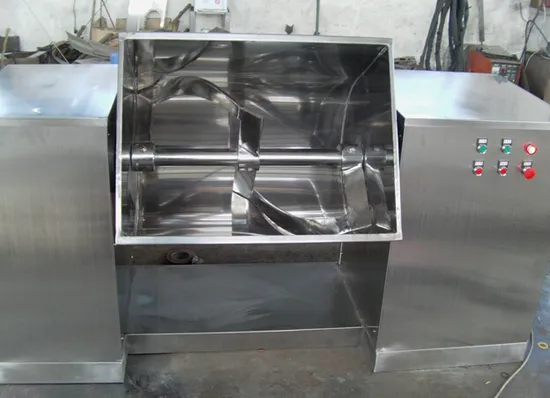

CH Series Trough Type Mixer
Main Application :
As a whole stainless horizontal trough typed mixer, this machine is widely used for mixing of powdery or paste material in pharmaceutical chemical and foodstuff industries.
Working Principle:
S type agitating paddle is rotated, by mechanical driving, which pushes the material to turn repeatedly and to mix uniformly. operate with electrical control, it can set mixing time to realize automatic stop and electric discharge upon expiration, thus improving the mixing quality of each batch of material and realizing high homegeneous mixing.
Technical Parameter:
| Model | Total volume (L) | Shaft speed (r/min) | Motor (kw) | Discharge motor(kw) | Overall dimension(mm) | weight(kg) |
| CH50 | 50 | 24 | 1.1 | 0.75 | 980×425×820 | 220 |
| CH100 | 100 | 24 | 2.2 | 0.75 | 1280×440×900 | 350 |
| CH150 | 150 | 24 | 3 | 0.75 | 1590×660×1075 | 500 |
| CH200 | 200 | 24 | 4 | 0.75 | 1590×660×1125 | 600 |
| CH300 | 300 | 24 | 5.5 | 1.1 | 1890×700×1235 | 750 |
| CH400 | 400 | 24 | 5.5 | 1.1 | 2140×705×1265 | 1000 |
| CH500 | 500 | 22 | 7.5 | 1.5 | 2435×900×1385 | 1350 |
>>
