Portable Digital Thickness Meter Industrial Coating Gauge for Accurate Measurements

Product Description

Product Parameters Portable Digital Thickness Meter Industrial Coating Gauge for Accurate Measurements
Descriptions:

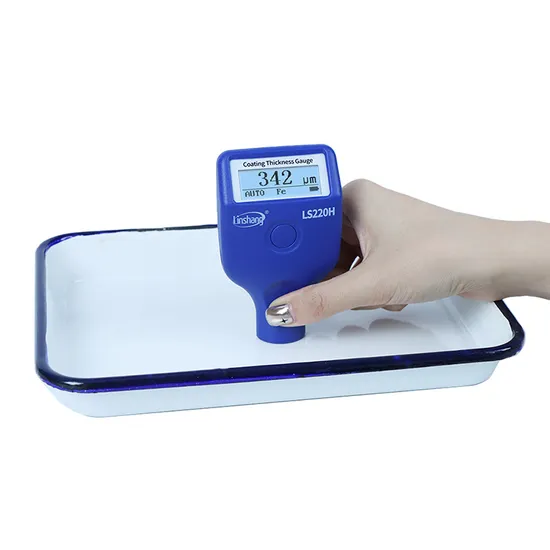

LS220H portable coating thickness gauge can measure non-ferromagnetic coatings on ferromagnetic metal substrates and also non-conductive coatings on non-magnetic metal substrates. Widely used in the metal processing, paint, hardware, marine, aerospace and aviation industry, etc. Dual use of ferrous and aluminum, intelligent recognition of the measuring substrate, and fast automatic conversion. Adopting advanced digital probe, good repeatability, to ensure that through the national measurement and testing. Using the ruby probe, with wear and corrosion resistance, long service life. The galvanized coating thickness tester is compact and easy to carry.
Features:
1. Dual use of ferrous and aluminum, intelligent recognition of the measuring substrate, and fast auto-conversion.
2. Adopting advanced digital probe, good repeatability, to ensure accurate measurements.
3. LS220H galvanized coating thickness tester have three measurement modes: Fe mode, NFe mode and Fe/ NFe mode
4. LS220H galvanized coating thickness tester have simple design and small size which is easy to carry and operate.
5. Using the ruby probe, with wear and corrosion resistance, long service life.
6. Suitable for testing coatings on ultra-thin substrates: Fe: 0.2mm/ NFe: 0.05mm
7. With temperature compensation technology, the high precision thickness coating gauge can ensure accuracy in different ambient temperatures.
8. Reflective sensitivity, 0.5S fast measurement.

Parameter	Value
Probe tip	Ruby fixed
Measuring principle	Ferrous: Hall Effect / Non-ferrous: Eddy current
Probe type	Integrated probe
Measuring range	0.0-5000μm
Resolution	0.1μm: 0μm - 99.9μm
	1μm: 100μm - 999μm
	0.01mm: 1.00mm - 5.00mm
Accuracy	≤±(3%H+2μm), H is the standard value
Unit	μm / mil
Measuring interval	0.5s
Minimum measuring area	Ø = 25mm
Minimum curvature	Convex:5mm / Concave:25mm
Minimum substrate thickness	Fe:0.2mm / NFe:0.05mm
Display	128×48 dot matrix LCD
Power supply	2pcs of 1.5V AAA alkaline battery
Operation temperature range	0ºC-50ºC
Storage temperature range	-20ºC-60ºC
Gauge size	101*62*28 mm
Weight(with battery)	79 g

Product Description

No.	Description	Quantity	Unit
1	LS220H coating thickness tester	1	Set
2	Fe zero-adjustment plate	1	Pcs
3	NFe zero-adjustment plate	1	Pcs
4	Standard film	1	Pcs
5	User manual	1	Pcs
6	Drawstring bag	1	Pcs
7	Certificate / Warranty card	1	Pcs

Company Profile Packaging & Shipping

Packing	Air Carton /Express Packaging/ Shrink Package
Delivery Terms	EXW, DAP, Express Delivery
Delivery Time	5-10 days in stock
Port	Shenzhen

FAQ Q: How to place order?
A: Talk to service staff, confirm machine details, after confirmed the order, we will send you PI to confirm.
Q: What is your warranty? And do you have technique support?
A: Our warranty is 1 year. We have technique support and training. We can also offer on-site serive if need.
Q: How Long is your lead time?
A: It depends on the different products.
Q: How to Pay? A: We accept T/T, and Global Pay
Q: Do you provide OEM or ODM service?
A: Yes, we have over 15 years experience for OEM and ODM serivce. Add your logo on machine is also ok for us.
Q: What's the shipment ways you can provide?
A: By Air, By sea, By Truck, By Express(door to door): DHL, UPS, FedEx, TNT, SF, EMS ect.
Q: What is the difference between coating thickness gauges?
(1) LS220H is an all-in-one machine for both ferrous and non-ferrous, with a range of 0-5000μm;
(2) LS221 is an external probe for both ferrous and non-ferrous, with a range of 0-5000μm;
(3) LS225+F500 is dedicated to ferrous substrates, magnetic induction measurement principle, range of 0-500μm, optional probe fixing bracket;
(4) LS225+N1500 is dedicated to non-ferrous subtrates, with a range of 0-1500μm, eddy current induction principle, optional probe fixing bracket, dedicated to the aluminum industry;
(5) LS225+N2000 is dedicated to ferrous and non-ferrous, with a range of 0-2000μm, eddy current induction principle, self-gravity trigger test, professionally used to measure coating thickness with a large flat area.

---
