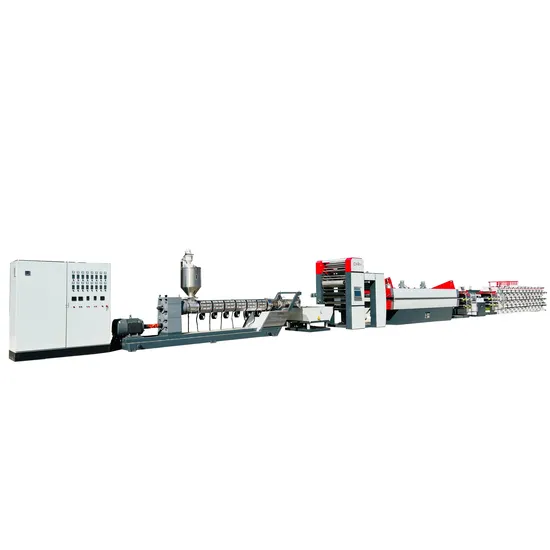

PP Monofilament Rope Yarn Extrusion Production Line Equipment

Product Description

Product Application : CNRM Hitech extruder machine is for making monofilament yarn, danline yarn.
1. Raw material: PP(polypropylene), HDPE( polyethylene) ,PET , nylon.
100% new or recycled mixed material
2. Yarn size: Diameter 0.13-0.35mm
3. Capacity: 1200-3000KG/24H
4. Application:
Rope production: plastic rope, pe rope, hdpe rope, pet rope, nylon rope, fishing rope, braided hollow rope, danline rope.
Net production: fishing net, insect net, anti-bird net, sunshade net, sport net, cargo net, etc.
Webbing production: various monofilament webbing.
Other production: brush yarn, broom yarn, nylon fishing line, grass trimmer line, etc

Extruder machine for making monofilament yarn
Item	HDYSJ-70	HDYSJ-80	HDYSJ-90
Dia of Fiber	0.13mm-0.30mm	0.13mm-0.30mm	0.15mm-0.3mm
Dia of Screw	70mm	80mm	90mm
Ratio of L/D	30	33	33
Rotation Speed of Screw	20-90r/min	20-90r/min	20-90r/min
Drawing Ratio	4-10	4-10	4-10
Heating Mode	Electric heating	Electric heating	Electric heating
Cooling Mode	Water Cooling	Water Cooling	Water Cooling
Power Consumption	100kw/65kw	130kw/80kw	150kw/100kw
Max Outputcapacity	1400kg/24h	2000kg/24h	3000kg/24h
Machine Dimension(L*W*H)	20m*3m*2.5m	23m*3m*2.5m	27m*3m*2.5m
Machine Weight	9000kg	12000kg	15000kg

Main Features: 1. Strong raw material, we adopt strong new material for machine frame production, making the machine running smoothly when production.
2. Good quality electric parts, make sure the machine can use for long time without problem.
3. Strong technical team and full experience for costuming the machine as client's production request.
4. Professional pre-sale service, help you get exact machine for your product.
5. Easy control and adjust system, make your production more easy and fast.
6. Responsible after sale service, help you install the machine, train you use the machine step by step.

Detailed Images
H type Bobbin winder :
Olivary shape yarn winder :


Certifications :

Our Service:
1. Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2. Clients Traning Services
We can train your staff to use your equipment systems properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.Good After-Sales Service
We offer the Preventative Maintenance and After Sales Service.We offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.



Related Products :
1. PP raffia Extruder :
For extruding PP raffia , PP raffia yarn for making baler twine, PP raffia ropes .
2. Ring Twister machine :
For double and twisting PP PE Polyester Nylon Cotton yarns into twine or strands on bobbin.
3 : Rope Twisting Machine :
For twsiting PP PE Nylon Polyester Cotton Jute Sisal Material ropes , 3 or 4 strands , diameter 4-40 mm
